Hydraulic shaftless mill roll stand
- Product Details
Description of Hydraulic Shaftless Mill roll Stand

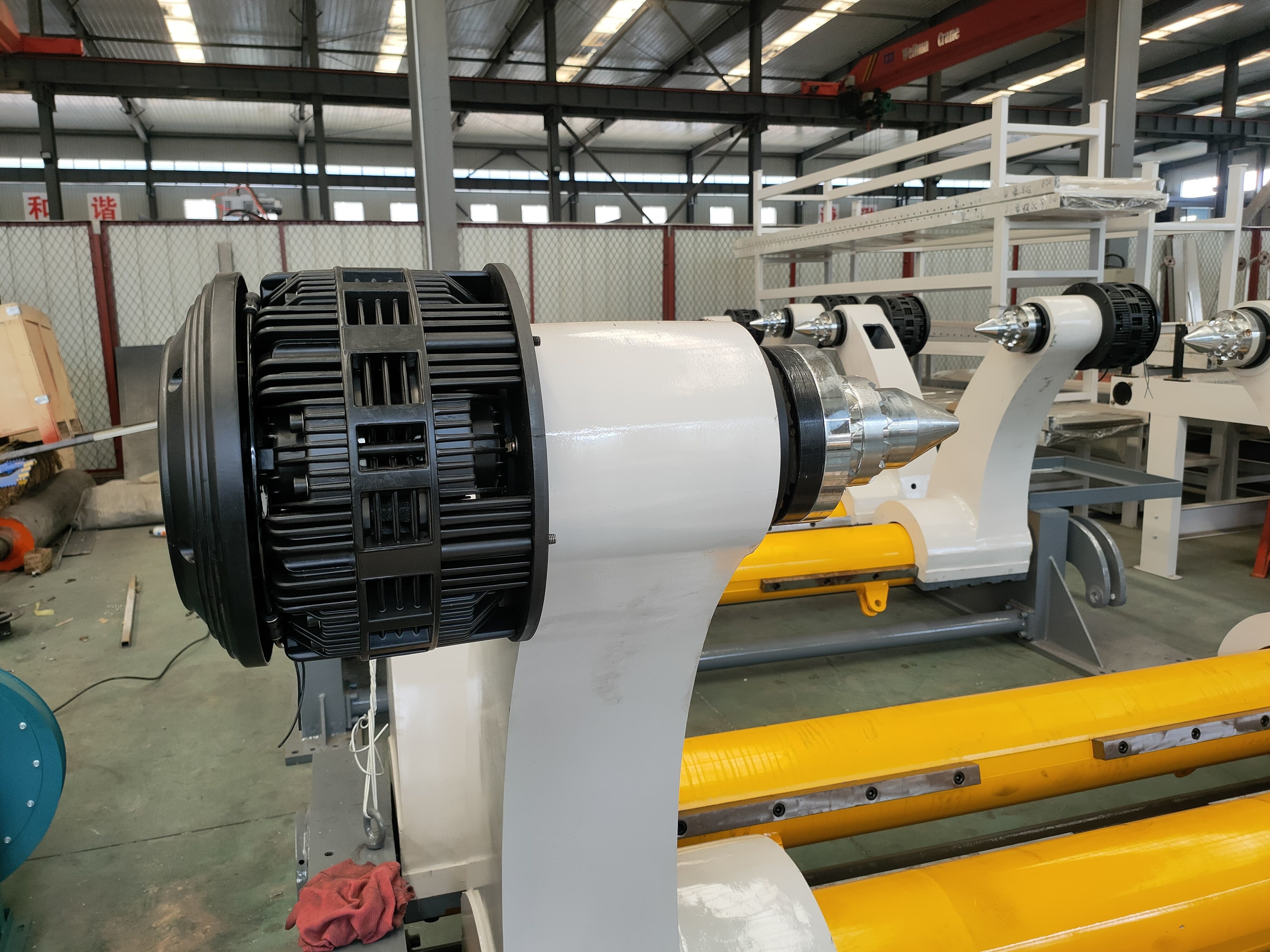

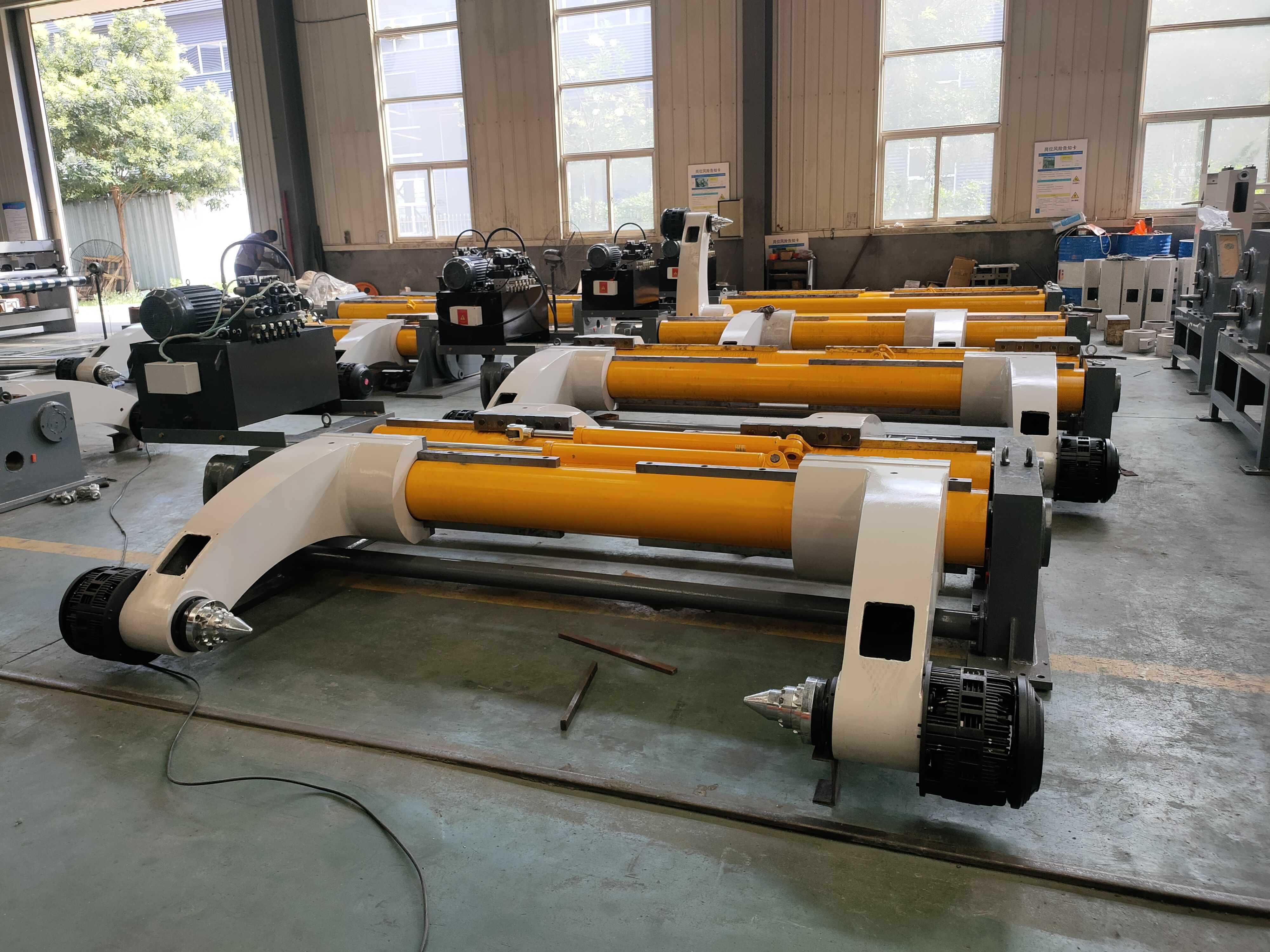

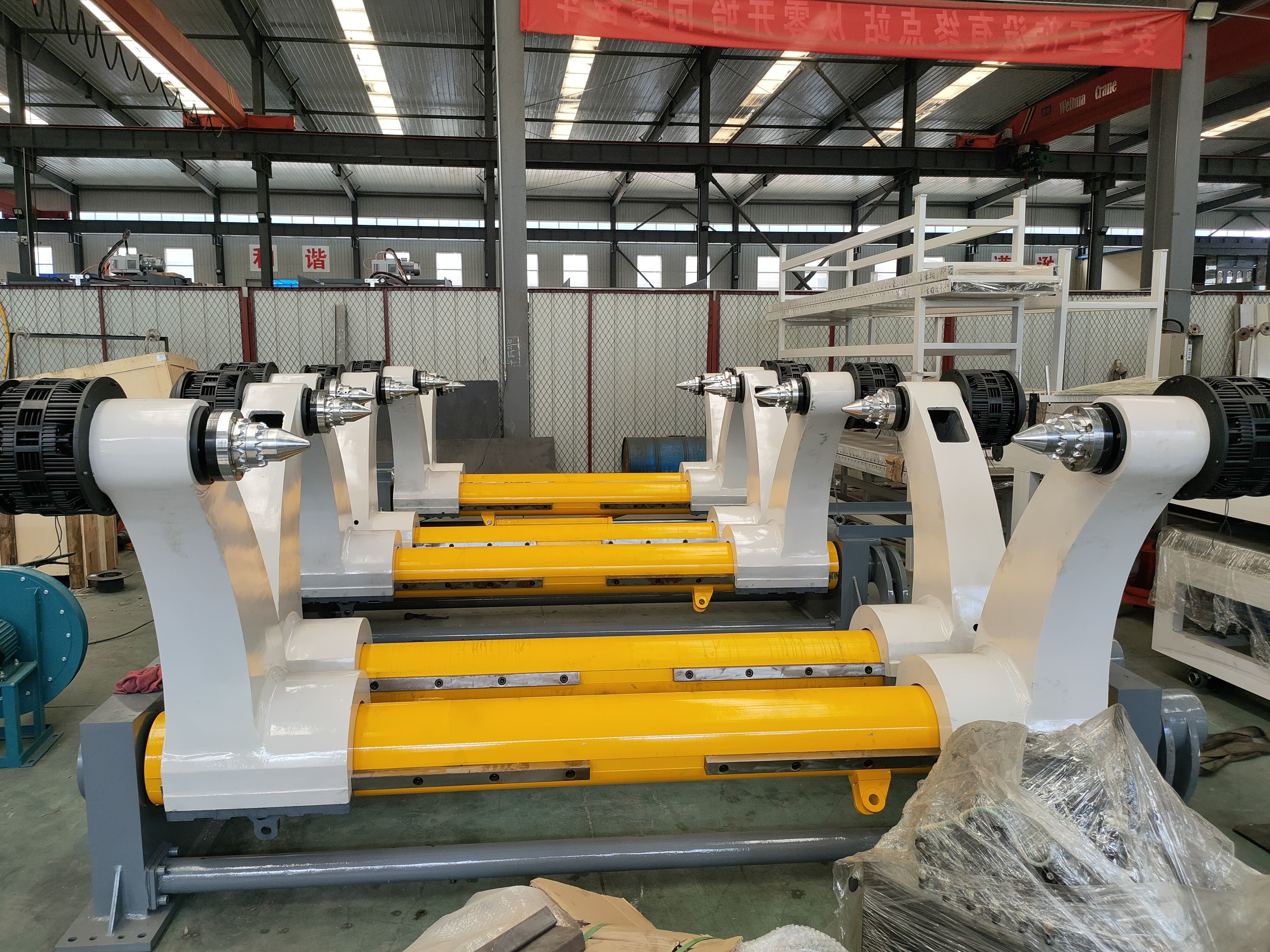

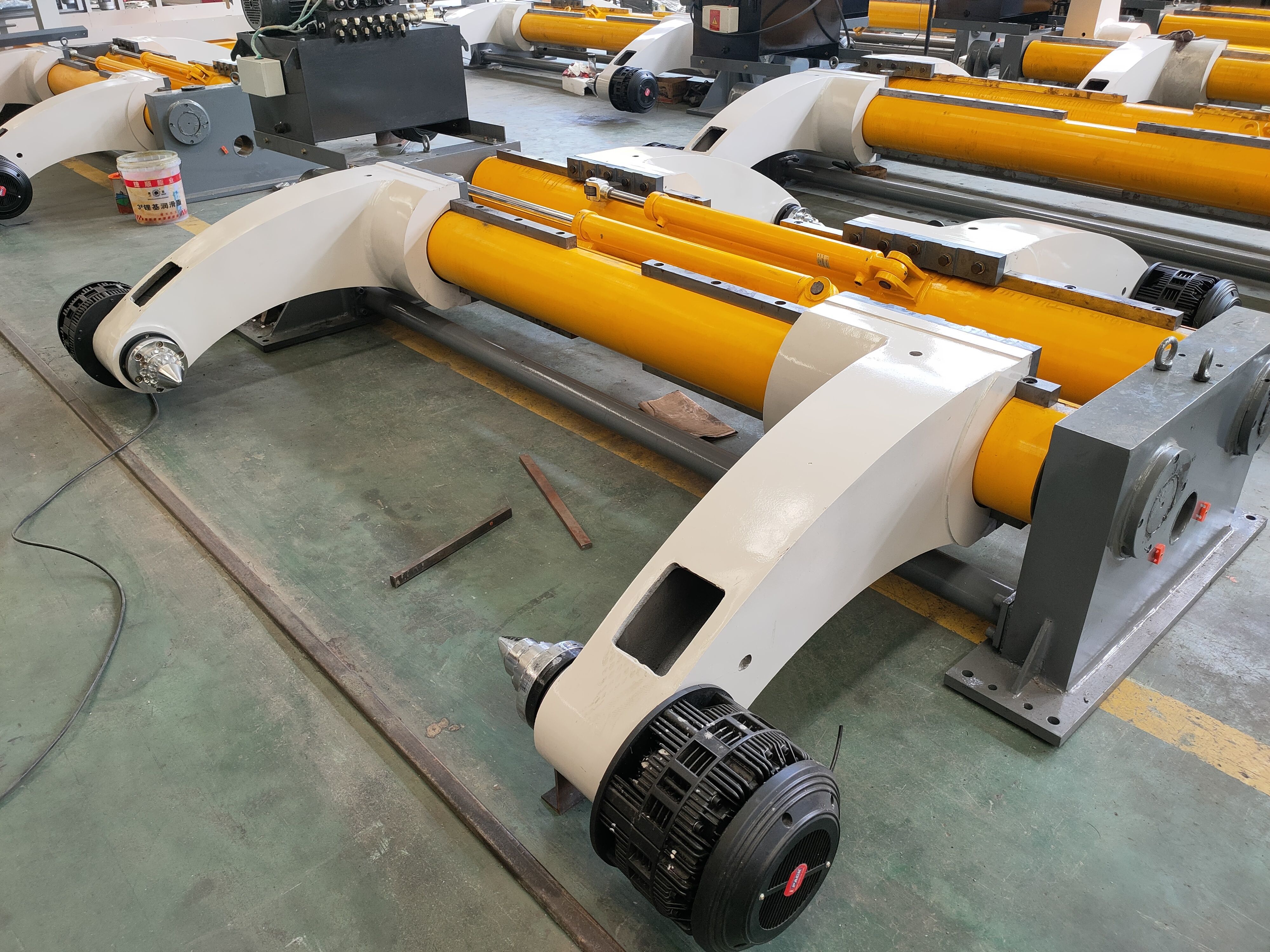

Hydraulic shaftless mill roll stand is used to unroll raw paper in the corrugated cardboard production line. The symmetrical structure design of this mill roll stand allows it to feed two pieces of kraft paper at a time. It can work without any brakes. Besides, the lifting, clamping, loosening, moving, and alignment are all hydraulically operated, which enables the fast paper feeding of the mill roll stand.
Features of Hydraulic Shaftless Mill Roll Stand
★ This mill roll stand is equipped with double rotating shafts and four arms
★ Two paper rolls can be picked up and supported simultaneously
★ Hydraulic control of lifting, clamping and centering of paper rolls
★ Web tension can be controlled by pneumatic brake or manual brake
★ Optional taper center, stretch center and spring chuck are all available
Parameters of Hydraulic Shaftless Mill Roll Stand
Max. Paper Roll Dia φ1500mm Effective Width 900mm - 2200mm Maximum Support Weight 3T Main Axis φ242mm Pneumatic Source Pressure(Mpa) 0.4 - 0.8Mpa Magnetic Valve Voltage 380V 50HZ Working Pressure (mpa) 16-18mpa
