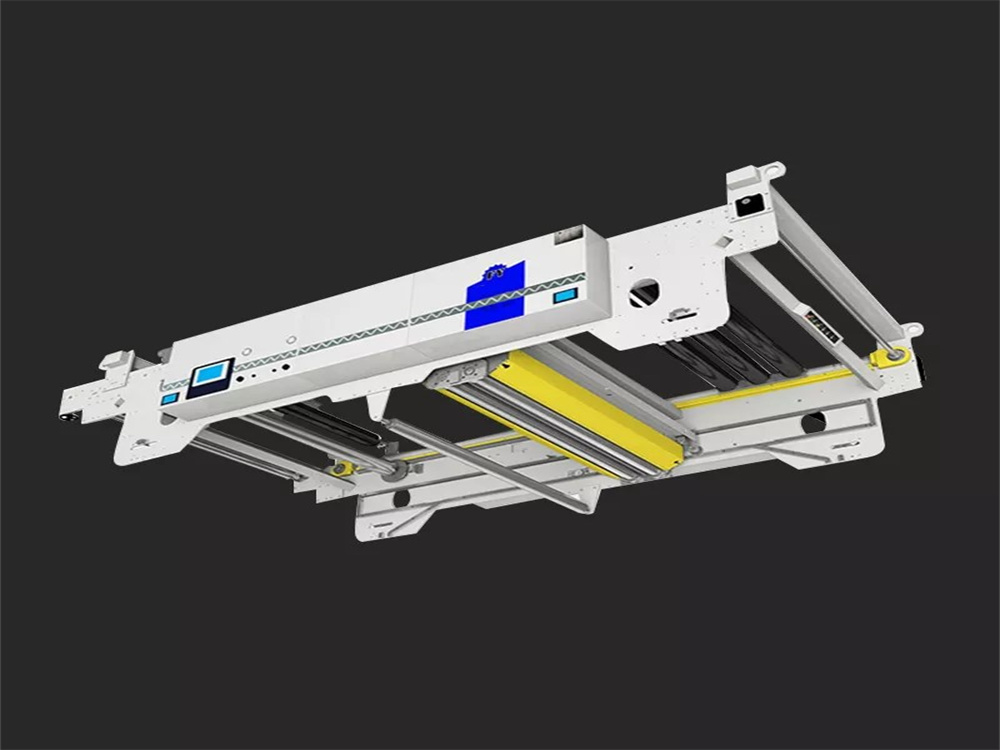

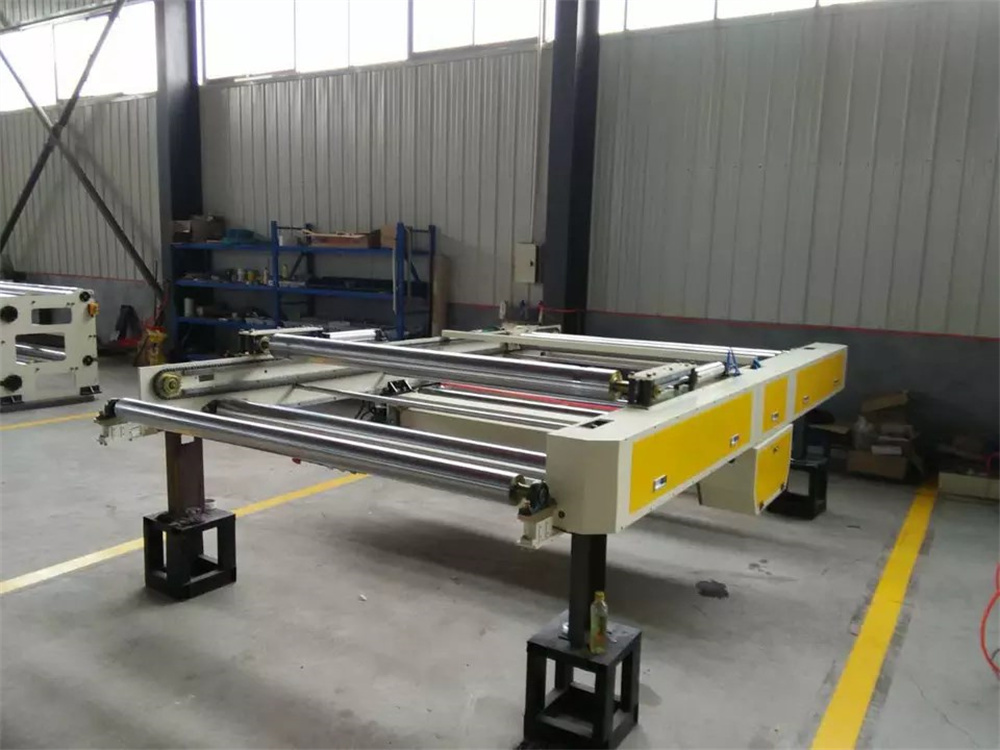

Auto Splicer
- Product Details
-
Description of Auto Splicer
The Auto Splicer functions as a central element for smooth, continuous operation, fast, and helps to increase production output and save production cost during the corrugated cardboard production process.
Features of Auto Splicer
★ No paper tail connecting, reduce the loss of the base paper (the overlap of the base paper about 40 mm width)
★ When the paper truck removes, automatically transferred out, vacuum-adsorbed, easy to operate, and fully automatic tension control, paper-connecting zero error.
★ All adopt PLC automatic control
★ When the buffer wheel pulls for the first time, it's easy to pull and aligned automatically
★ Collecting paper controlled by a cylinder, will not cause broken tile and blistering problemsParameters of Auto Splicer
Design Speed Model 300-280 m/min (Flute Liner) 250 m/min (Top Liner)
Model 400-380 m/min (Flute Liner) 250 m/min (Top Liner)Paper Connection Overlap connecting Design Width The maximum paper width can reach 2550 mm Weight of the original paper 50g/m2 - 350g/m2 Paper reaction completion time About 1 second Gas source A minimum of 0.6Mpa dry clean air source Power demand Power supply: 380V, 50Hz, 20A
control power: 12V, 24VPaper frame brake pneumatic brake / magnetic powder brake Product Gallery
