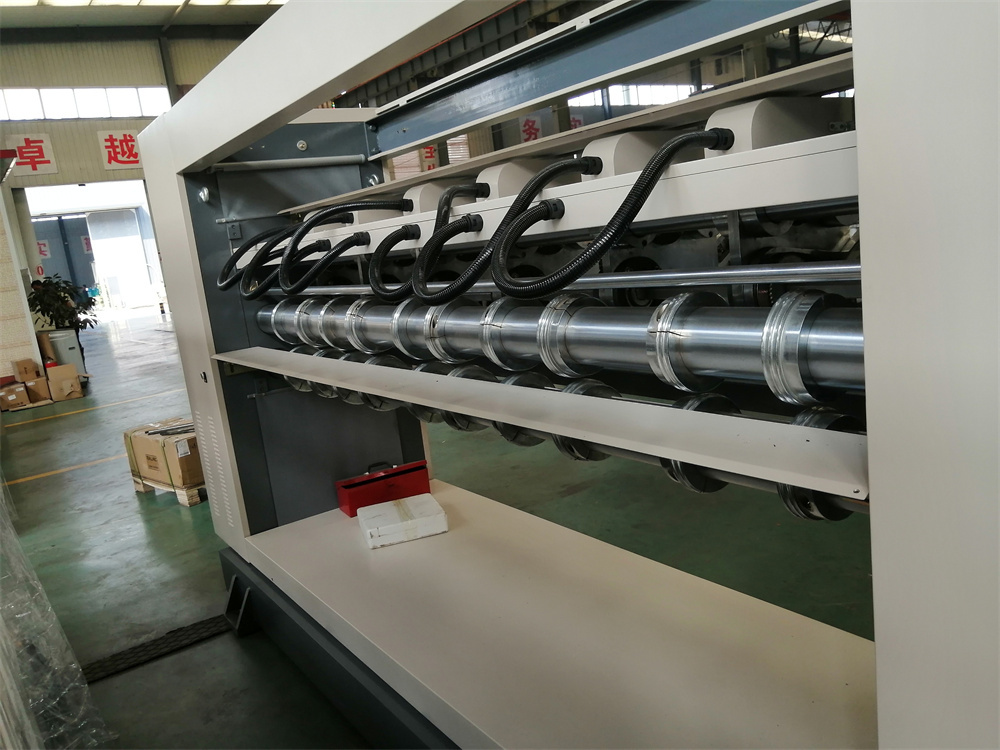

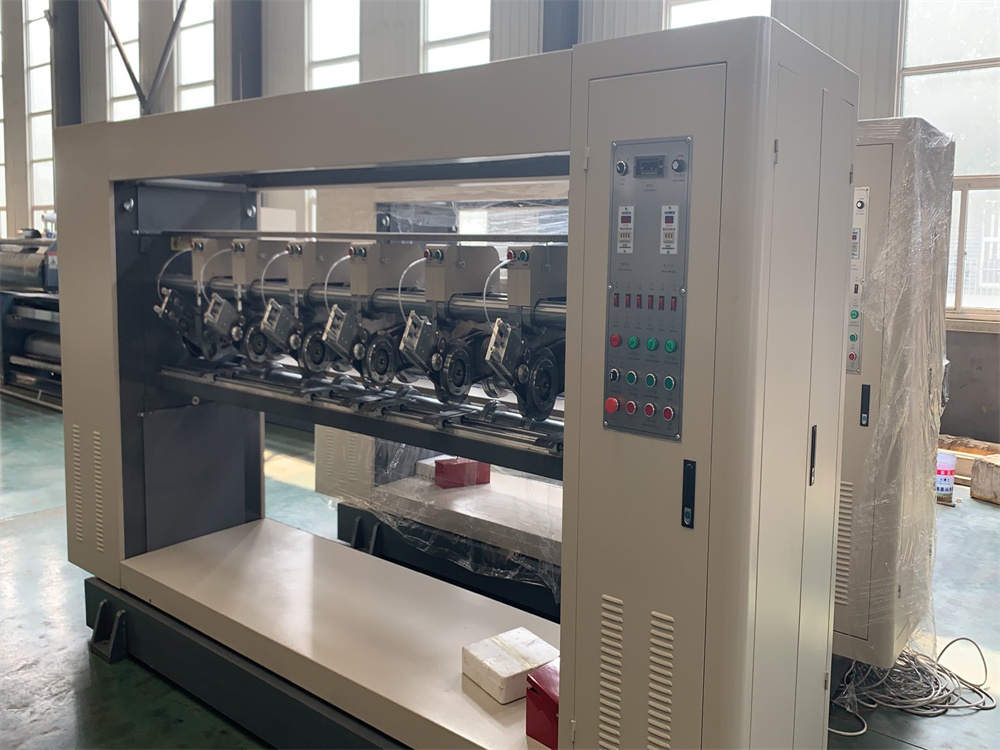

Description of Slitter Scorer Machine

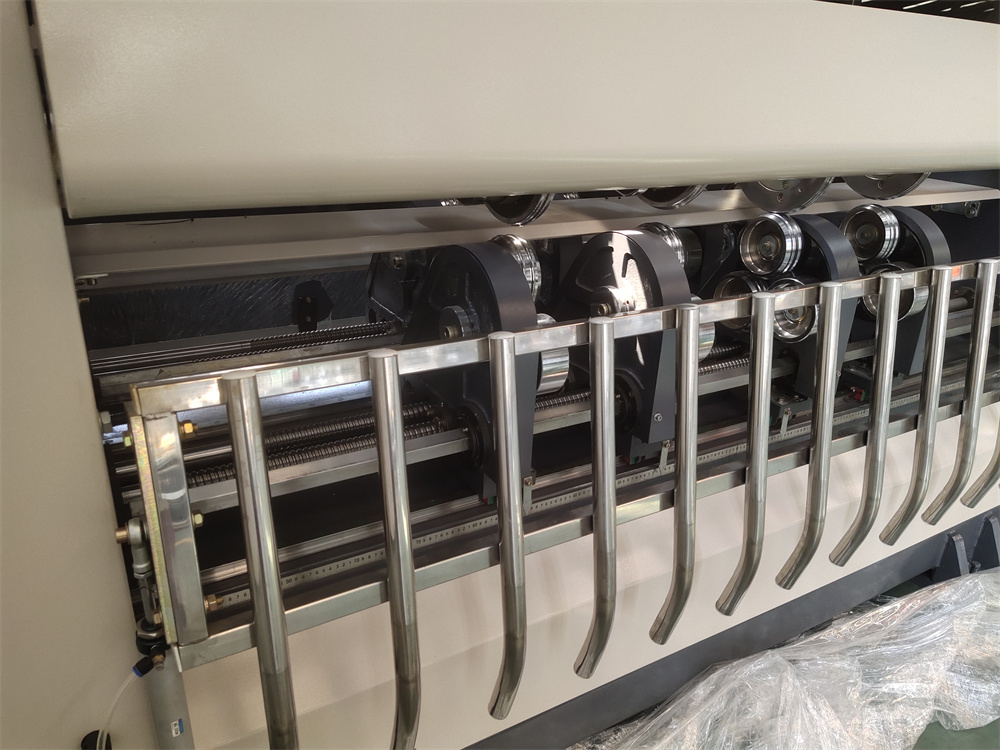

Slitter Scorer is an important part of the corrugator line. Ball screw and nut drive are adopted for cutting line and changing single, with high mechanical precision, flexible rotation, small reverse clearance, and accurate positioning. Slitting and scribing positioning accuracy ≤ ± 0.5 mm; Slitting, line change single adopts linear guide, high mechanical precision, stable guide, accurate positioning; The whole machine lateral movement deviation correction: lateral movement ± 100 mm.

Features of Slitter Scorer Machine

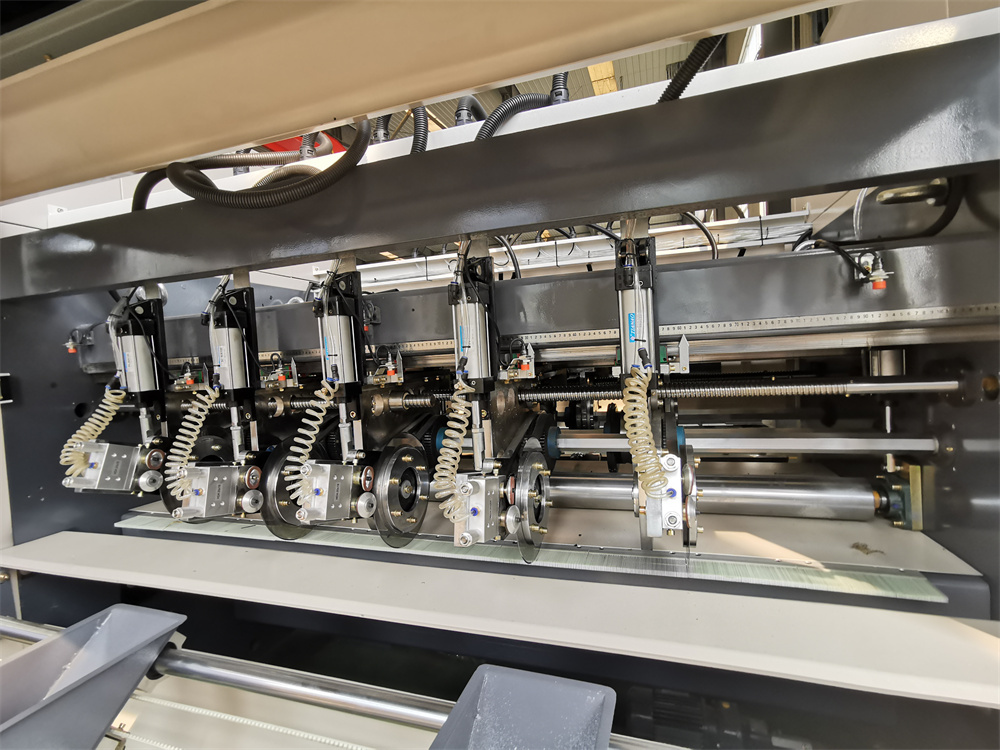

★ Adopt thin tungsten steel alloy blade, service life more than 8 million meters.

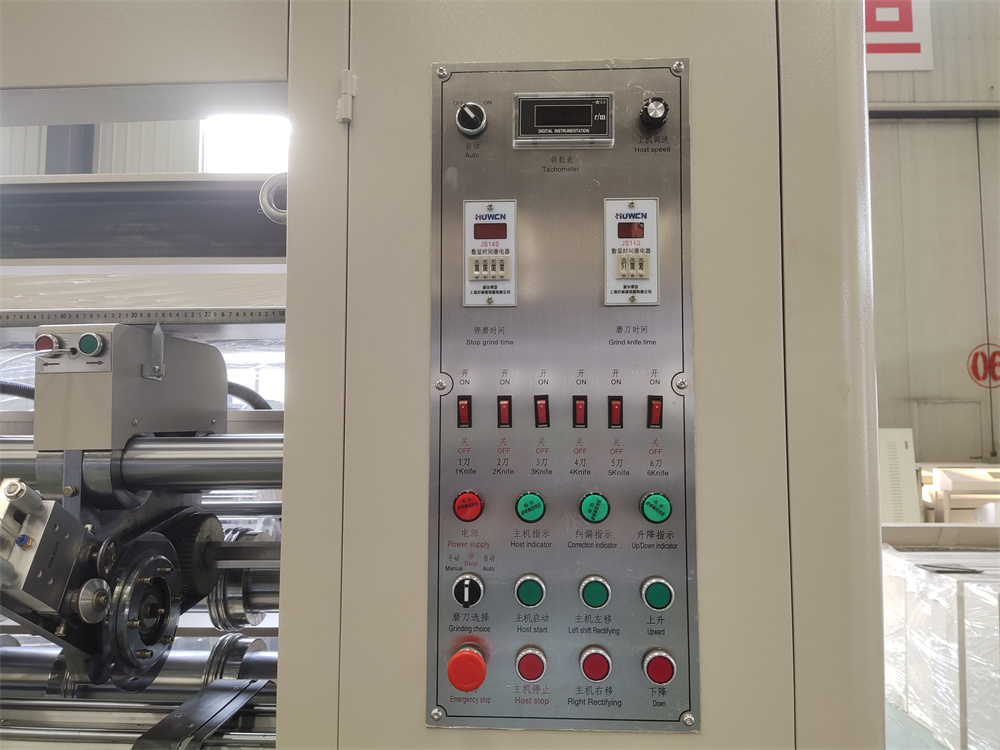

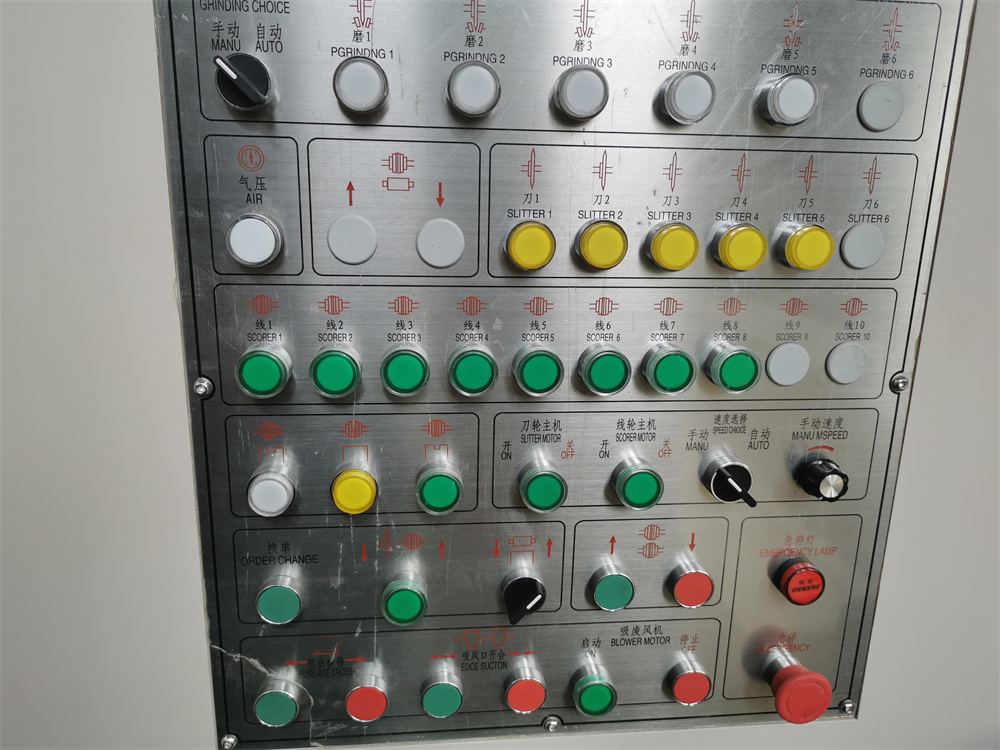

★ Full PLC computer control.
★ Automatic or manual grinding knife without stopping machine. Storing 999 sets of orders, automatically or manually change orders with non-stop machine in 3-8 seconds, two machines working together could realize immediately changing orders without slowing down. Automatic tracking production line speed to ensure synchronization with it.

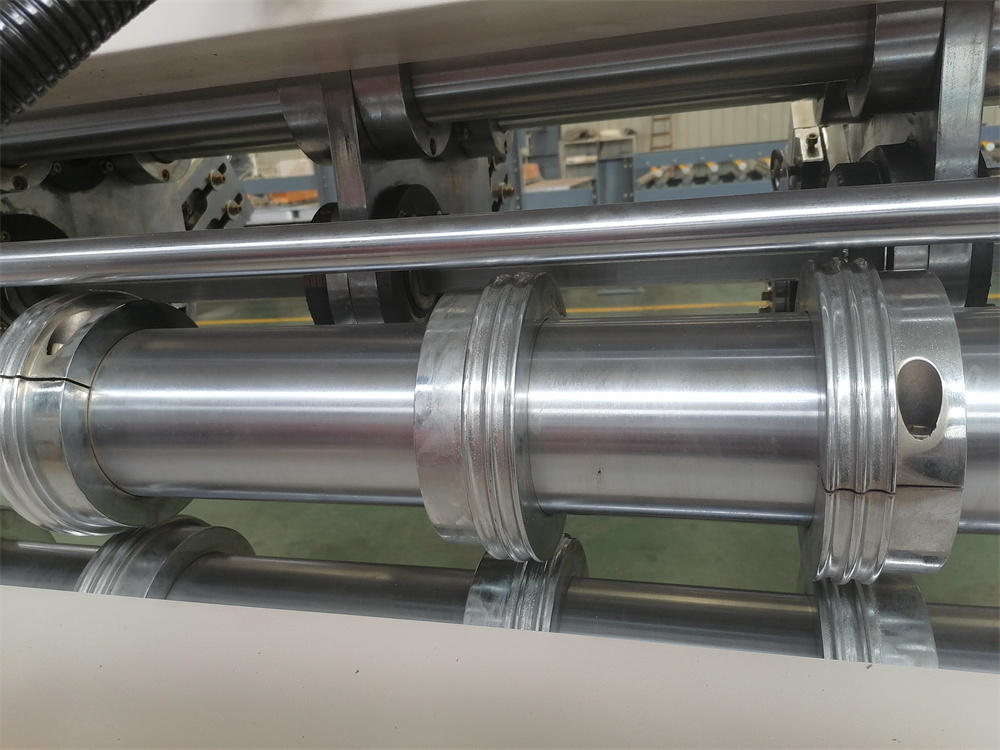

★ Three types of pressing line: convex to concave, convex to convex, convex to flat. It can be converted automatically. Creasing depth controlled automatically by computer.
★ With suction system it can move according to the conversion of orders.
★ Frequency motor drive.
★ Blade is made of tungsten alloy steel, cutting smoothly and ser-vice life is more than 30,000 m.
★ Electric lifting to change the height of cutting and pressing line, to match the paper feeding height.
★ Electric lateral movement of the whole machine, effectively match the cardboard deviation.

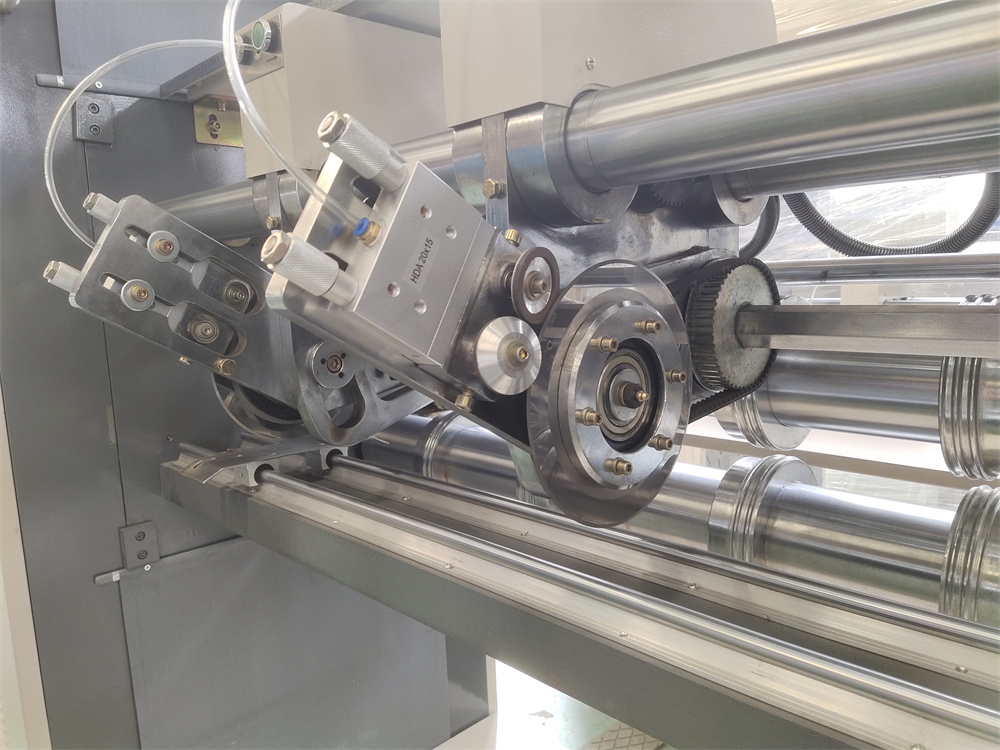

★ The automatic grinding system can be non-stop ground with pneumatic control.
★ Setting interval meter and time at any time according to the material or trimming conditions.

Parameters of Slitter Scorer Machine

Paper Width mm	External Dimensions (mm) LxWxH	Weight T	Total Power Of Motor kW
1400	3430 x 1630 x 2150	4.0	24.3
1600	3630 x 1630 x 2150	4.5	24.3
1800	3830 x 1630 x 2150	5.0	26.3
2000	4030 x 1630 x 2150	5..5	28.3
2200	4230 x 1630 x 2150	6.0	30.3
