High-Speed Corrugator Belt
- Product Details
-
Product Description
The High-Speed Corrugator Belt is made of imported 100% synthetic polyester and viscose. It is ideal for high-speed corrugators that has to frequent change of cardboard widths.
Product Features
★ Suitable as the top belt with the running speed over 200 m/min
★ Superior heat and wear resistance
★ Excellent absorption and permeability
★ Less elongation or shrinkage
★ 50-70 million linear service lifeProduct Parameters
Product
Corrugator Belt Inwoven Aramid Edge
Material
100% Synthetic Fiber (Origin: Germany) Thickness
8.5–10 mm
Width range
1600 mm – 3300 mm
Temperature resistance
a) 160 °C
b) 200 °C
c) 254 °C
Notes: a) Temperature for long-time operation, b)Temperature for instantaneous operation, c)Melting pointTensile strength-L
15kN/40MM
Tensile strength-W
9.1kN/40MM
Coefficient of friction
≥ 0.42µ Thermostability-L -0.68%
Thermostability-W +0.21%
Air Permeability
0.93×10³cm³/(cm²·min·kPa) EDGE
Normal Edge
GSM
6.8kg/㎡
Packaging
For air shipment: woven bags and wooden pallet

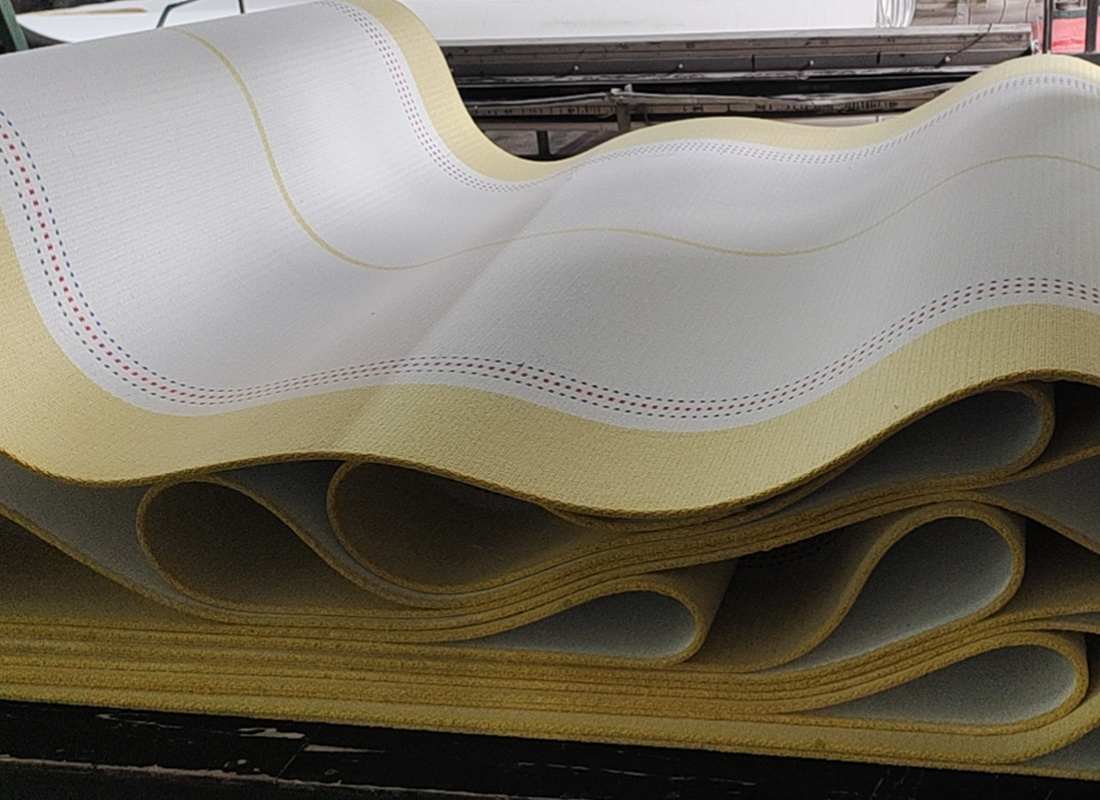

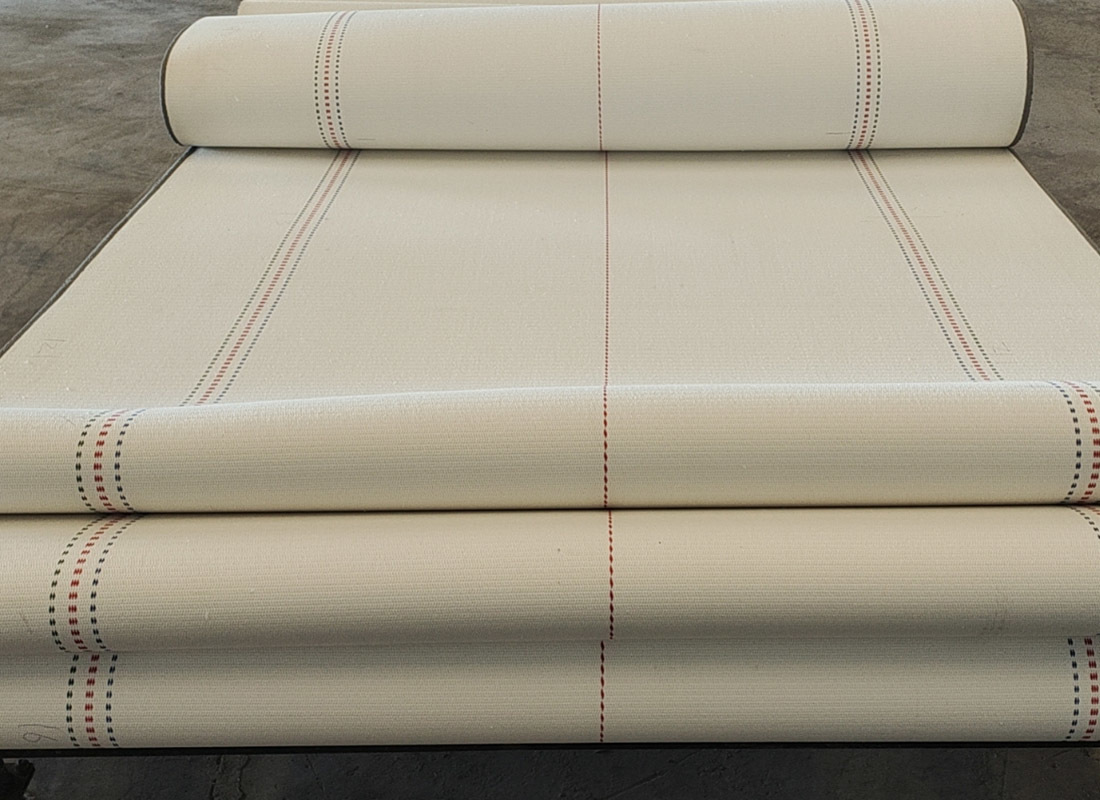

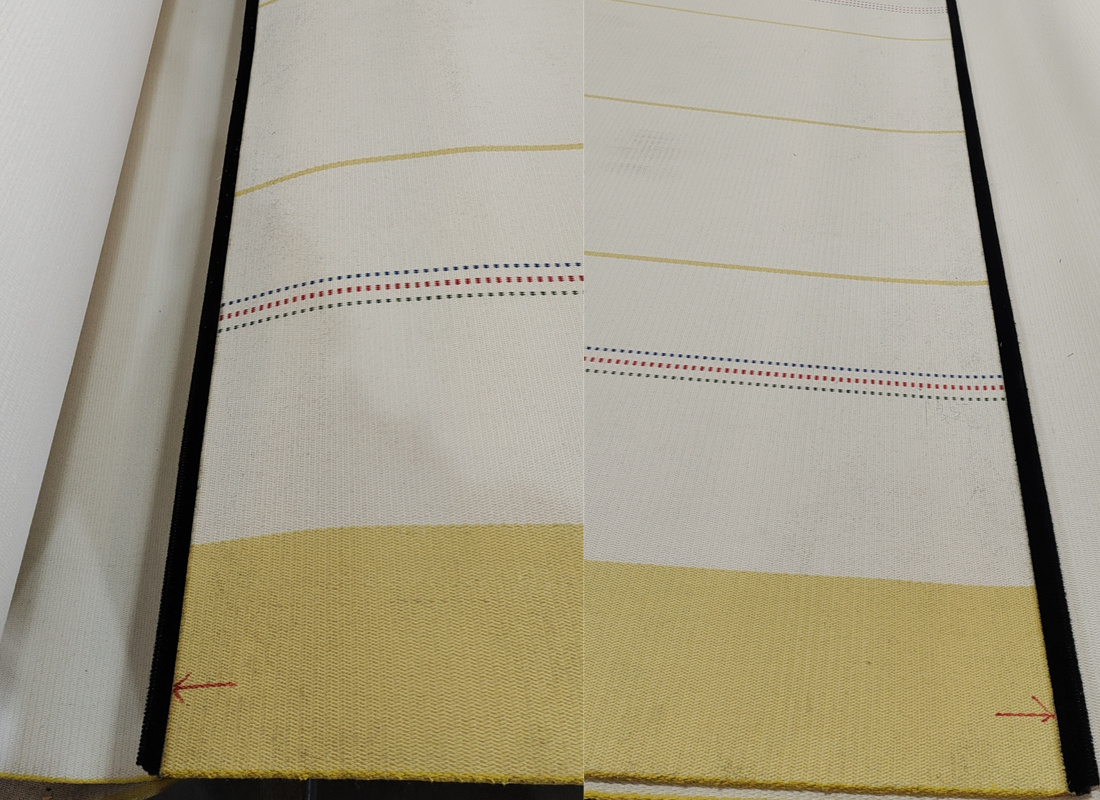

For sea shipment: solid wooden boxProduct Gallery
