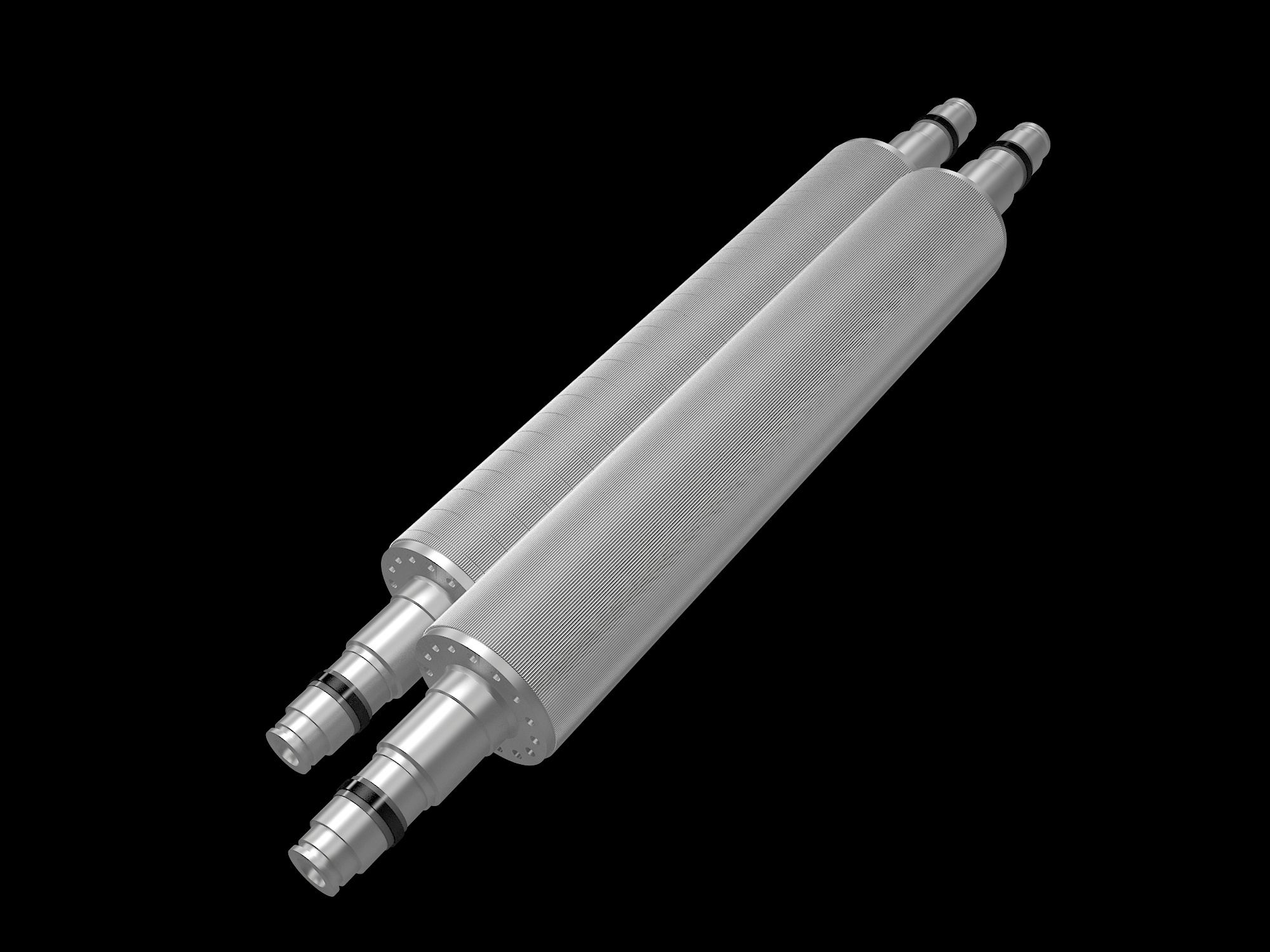

Tungsten Carbide Corrugating Roll

Tungsten Carbide Corrugating Roll has a chrome-plated coating with a thickness of 100-120 um. It is mainly used on the Single Facer machine of the corrugated cardboard production line.

Category:

Corrugating Rolls

Email:

team3@huataogroup.com

WhatsApp:

Product Details

Product Description

Tungsten Carbide Corrugating Roll material selection of 50CrMo alloy steel forgings, hardness is second only to diamond excellent wear resistance, different from ordinary corrugated roll corrugated design, suitable for corrugated roll high-speed operation, reduces vibration and noise.

Product Features

★ Employing advanced heat treatment and plating technology
★ It adopts computer assistant design, and sets all item parameters scientifically
★ Using big CNC corrugating roll precision grinding machine group
★ Computer control to grind the concave roll
★ Select the good quality 50CrMo alloy steel forge pieces. Adopt Germany's advanced process to quenching super ficialinter mediate frequency, hardened layer>7 mm, hardness>HRC50
★ Over 30 million linear meters service life

Product Parameters

Product name	Tungsten Carbide Corrugating Roll
Material	50CrMo alloy steel
Coatings	Tungsten carbide coating
Diameter	100-600 mm
Working length	1000-4000 mm
Flute type	A, B, C, E, F, O
Hardness	More than HRC50
Service life	More than 30 million linear meters

Flute Specification

Flute Type	Flute	Teeth/300mm	Height Of Flute
A	UV	30±2	4.6-4.9
C	UV	39±3	3.6-3.9
CB	UV	44±2	3.0-3.4
B	UV	50±2	2.6-2.9
BE	UV	66±3	1.9-2.1
E	UV	90±10	1.1-1.5
F	UV	124±10	0.7-0.8
G	UV	185±12	0.5-0.65
N	UV	200±15	0.4-0.5
O	UV	267 or design	0.25-0.35
