Graphite Insulation Cylinders

PAN-based Carbon fiber felt insulation cylinder,also called solid-state graphite felt tube , rigid graphite felt cylinder Main applications: it is mainly used for vacuum high-pressure gas quenching furnace, low pressure sintering furnace, pressurized vacuum sintering furnace.

Category:

Email:

team3@huataogroup.com

WhatsApp:

Product Details

Product Description

★ PAN-based Carbon fiber felt insulation cylinder,also called solid-state graphite felt tube , rigid graphite felt cylinder Main applications: it is mainly used for vacuum high-pressure gas quenching furnace, low pressure sintering furnace, pressurized vacuum sintering furnace.

Rigid Graphite Felt

The material is formed by inteerating graphite paper, car bon felt and carbon cloth, and then qubjecping then to secondary high temperature purification treatment. The material is superior in ablation resistance performance, thermal shock resistance performance, airflow washing proof performance and thermal insulation performance. It is mainly used for vacuum high pressure air quenching furnace, low pressure fritting furnace, pressurization vacuum sintering fiimace etc.

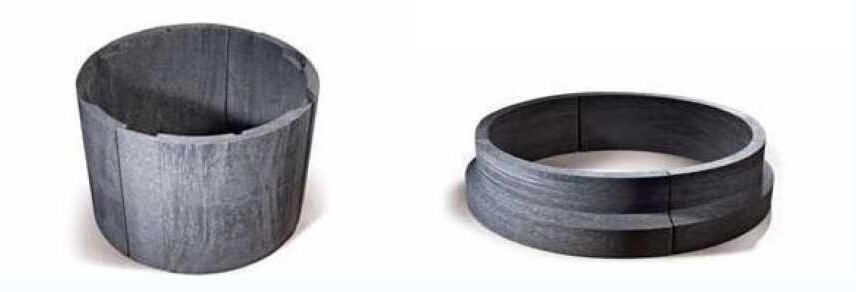

Carbon-carbon composite material cylinder

Carbon-carbon composite material has the following properties:
High-strength, high-hardness, small weig ht, high thermal conductivity, low coefficient of thermal expansio n, high-temperature resistance, good corrode resistance, good wear resistance, good thermal shake resistance.
We make the composite fabric into a material with big hardness, high-density and big strength.

Properties

Density: 0.20 to 0.25g/cm3
Carbon Content : 99%
Thermal Conductivity (1150°C) : 0.2 w/m.k
Temperature: 3,600 °C maximum
Size of tube/drum:
Diameter: 200mm ~1,500mm
Thickness: 30mm〜120mm
High: 300mm~2,000mm

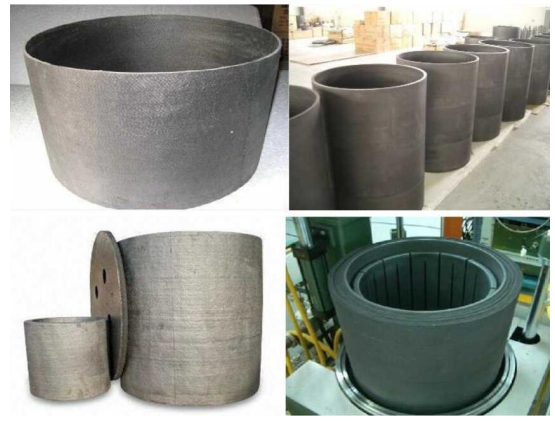

Product Gallery
