HT650 Aerogel Blanket
- Product Details
HUATAO Aerogel Blanket mainly divide into HT650, HT800, HT200.

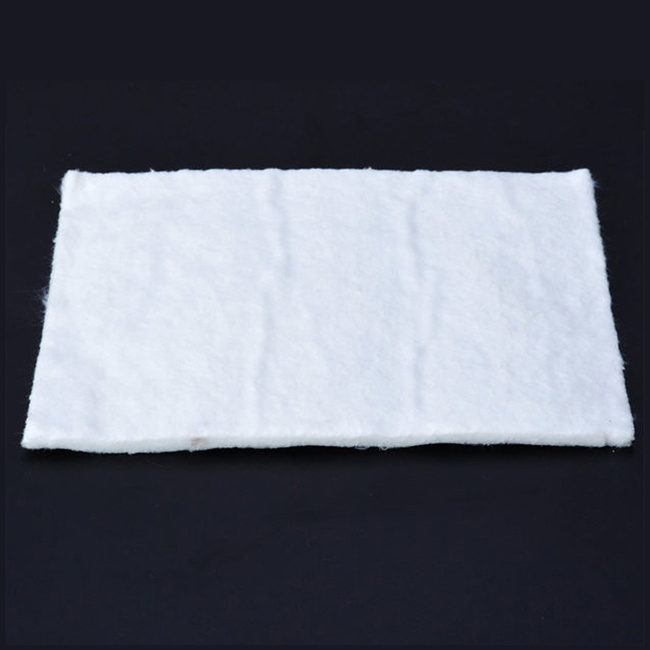

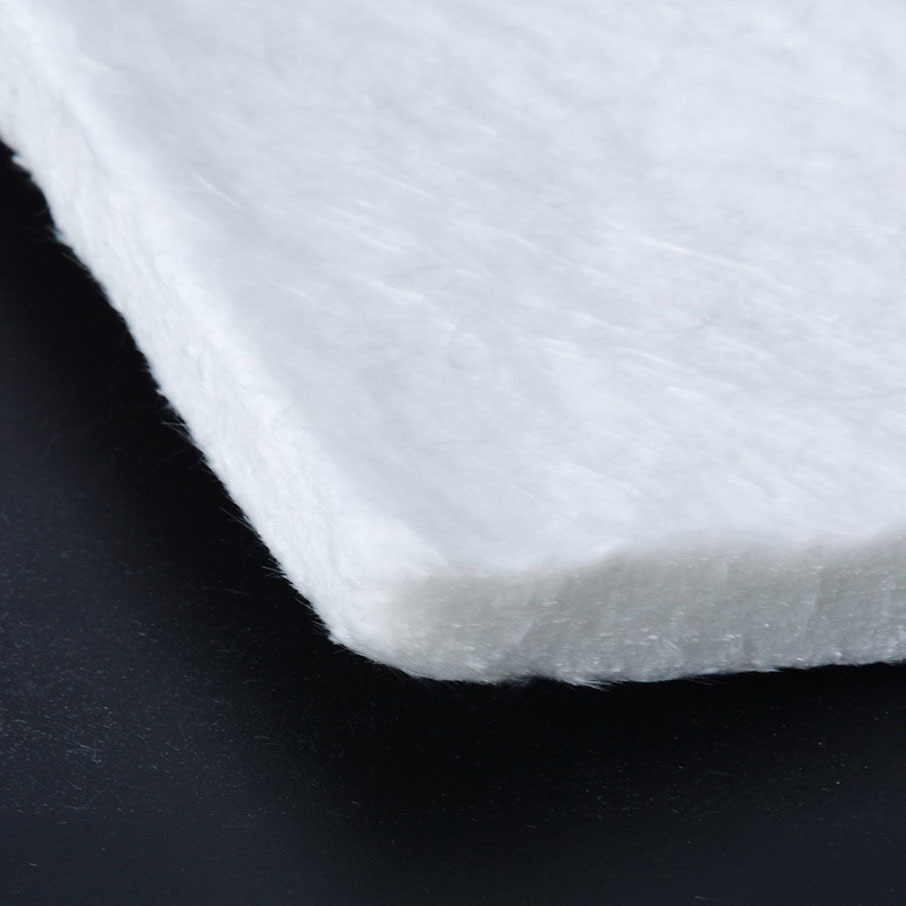

HT650 is an aerogel blanket composited with fiberglass.
★ Similar to Pyrogel XTE and Spaceloft, mainly used for the hot &heat insulation and building insulation.
★ Working temperature from -200ºC to 650ºC, the thermal conductivity from 0.018-0.023 W/m.k.
★ HT650 Series is a series of flexible and highly efficient insulation blankets.
★ Perfect for the insulation in pipes, tanks, vessels, and other applications.
★ HT650 Series is the ideal option for those in need of better insulation performance and lower energy consumption.
★ HT650 Aerogel Blanekt has the lowest thermal conductivity ≤0.021W/m.k of any present-recognized solid.
★ HT650 Series is a flexible, environmentally- friendly easy-handled insulation material.
HT800 blanket working temperature from -200ºC to 800ºC, the thermal conductivity from 0.018-0.023 W/m.k.
HT200. Aerogel insulation blanket with Aluminium foil, similar to Cryogel Z ( mainly used for the cold insulation, such as LNG, Working temperature from -190ºC-200ºC ), the thermal conductivity from 0.017-0.023 W/m.k.
HT200 series aerogel blanket is a kind of flexible, low-temperature, and high-efficiency cold-proof felt. This material combines nano-aerogel with special fiber to produce flexible, ultra-low thermal conductivity, high-efficiency thermal insulation felt, suitable for liquid nitrogen, LNG, and other low-temperature industrial pipes, tanks, and equipment cold-proof and heat-insulating.
HT200 series aerogel blanket are the best products in cold insulation materials and are ideal for customers to pursue better low-temperature cooling effects and lower energy consumption.
Application advantages of Aerogel Blanket for Heat Thermal Insulation
1. Superior Insulation Performance
2~5 times better than traditional insulation products with longer service life
2. Reduced Insulation Thickness
For the same insulation performance, just take a portion of the thickness of traditional material
3. Hydrophobicity and Fire-proof
Repel water from penetrating into pipes, equipment, A1 rating of fire-proof
4. Easy Handling
Lightweight, easily cut and sewn to fit different shapes of pipes and equipment, Less labor for installation
5. Transportation Costs Savings
Lower packing volume and lower weight can greatly cut down logistics costs
Huatao Datasheet of Aerogel Blanket
Product Name Aerogel Blanket Model HT650 HT800 HT200 Color White/Maroon/Black/Grey White/Maroon/Black/Grey White/Maroon/Black/Grey Thickness 3mm/5mm/6mm/10mm 3mm/5mm/6mm/10mm 10mm 25ºC Thermal Conductivity 0.017 ~0.023 W/(m·K) 0.017 ~0.023 W/(m·K) 0.017 ~0.023 W/(m·K) Application Temperature -200ºC - 650ºC -200ºC - 800ºC -200ºC - 200ºC Roll Size 10mm: Width 1500mm x 30m 10mm: Width 1500mm x 30m 10mm: Width 1500mm x 30m 6mm: Width 1500mm x 38m 6mm: Width 1500mm x 38m 5mm: Width 1500mm x 42m 5mm: Width 1500mm x 42m 3mm: Width 1500mm x 45m 3mm: Width 1500mm x 45m Hydrophobic Yes Yes Yes OEM Yes Yes Yes ODM Yes, cut into sheet, round, composite with 3M Brand adhesive, etc. Yes, cut into sheet, round, composite with 3M Brand adhesive, etc. Yes, cut into sheet, round, composite with 3M Brand adhesive, etc.
