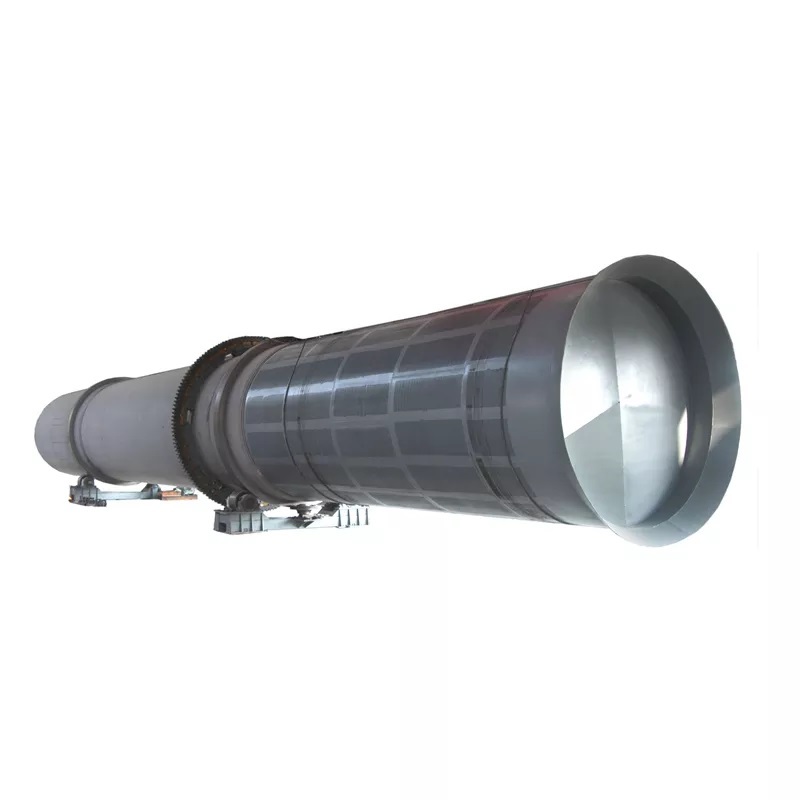

Drum Pulper

Drum type hydrapulper is mainly used in the paper making industry to breaking continuously and coarse screening of the waste paper material under the high consistency. It can maximum keep the physical property of the fiber.
File Download:
Click here!
  • Product Details
  • Drum Pulper

    Drum type hydrapulper is mainly used in the paper making industry to breaking continuously and coarse screening of the waste paper material under the high consistency. It can maximum keep the physical property of the fiber.

    Feature

    ★ Mainly used for continuous gentle pulping and coarse screening of waste paper under high consistency. Drum pulper can continuous pulp and preliminary screen, simple process.
    ★ It can gently pulp under 14%-18% high consistency to uttermost maintain the physical property of fiber.
    ★ Low damage to impurities and high efficiency of deslagging, which reduce the following equipment burden.
    ★ Low energy consumption, reduce running cost, improve the competitiveness for per ton pulp.
    ★ Long pulping residence time, sufficient fiber relief, low rate fine fiber loss.
    ★ Few quick-wear parts, continuous pulping, low maintenance cost.

    Drum Pulper Technical Specification

    Type HT-25A/B HT-275A/B HT-30A/B HT-325A/B HT-35A/B HT-4375A/B HT-40A/B HT-425A/B
    Drum Diameter: mm 2500 2750 3000 3250 3500 3750 4000 4250
    Processing capacity: t/d 80-170 130-220 180-300 230-380 300-510 410-700 600-1100 850-1400
    Power: kw 132 200 280 355 500 630 900 1120
