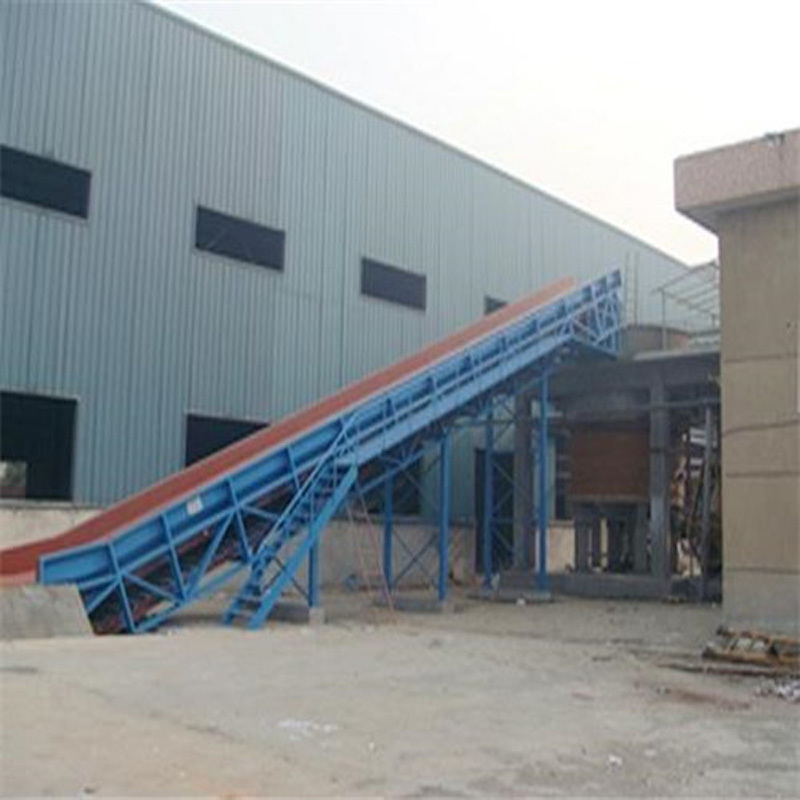

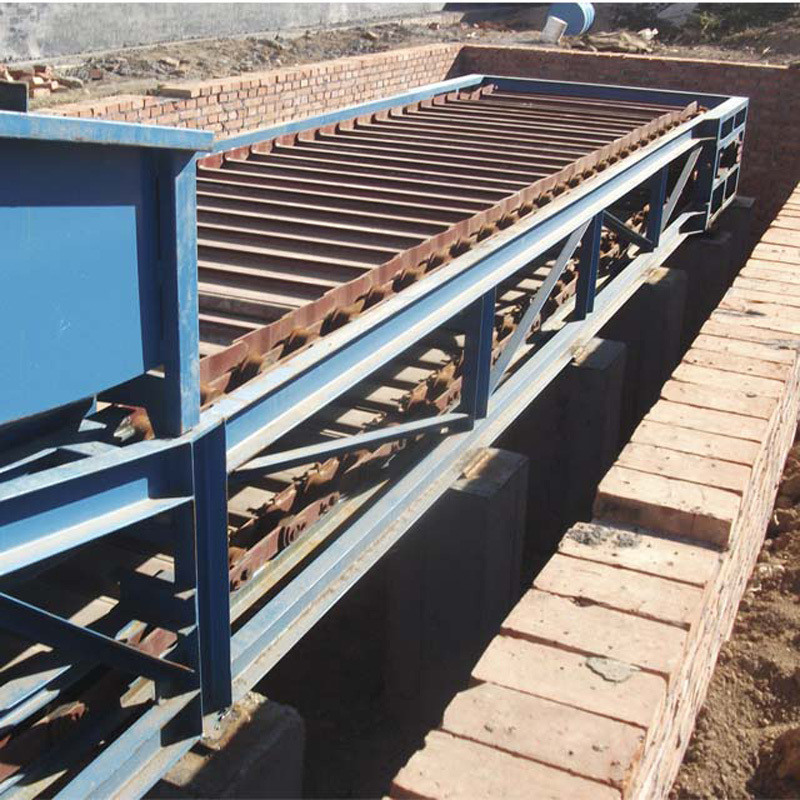

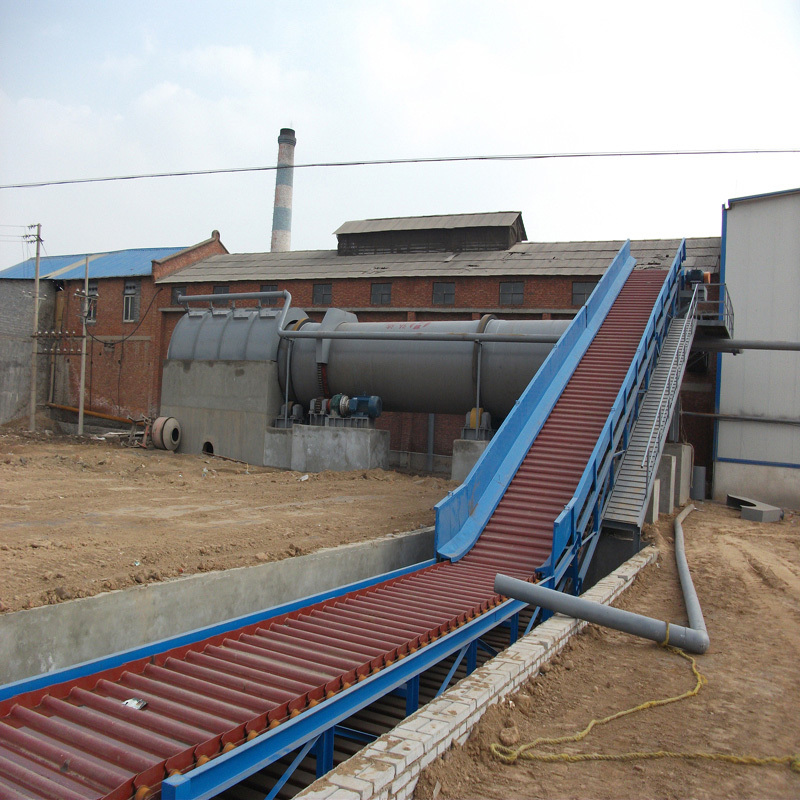

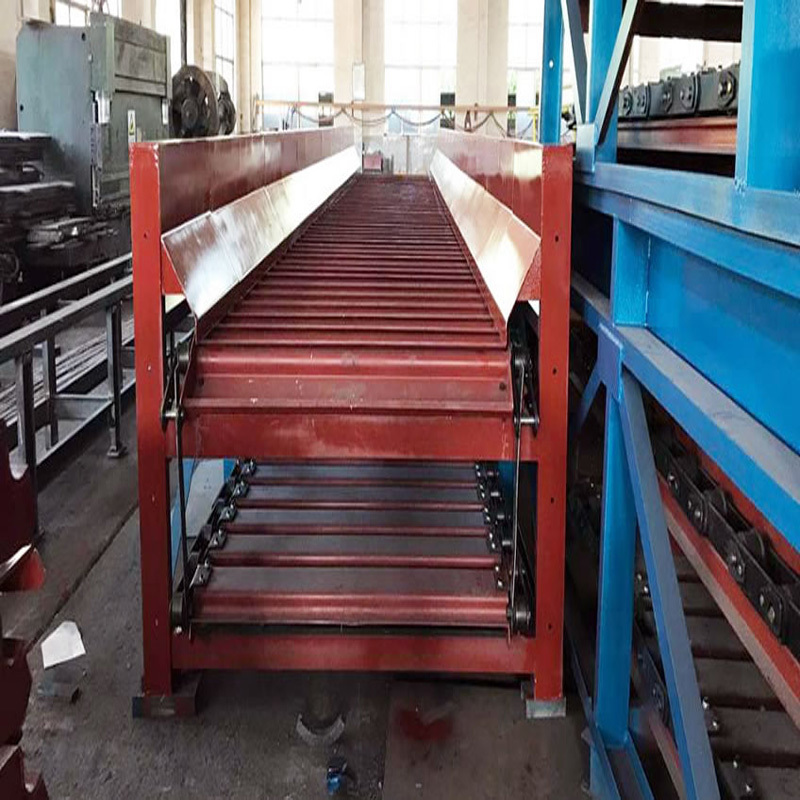

Chain conveyor is mainly used for conveying various kinds of pulp board, and waste paper in bulk and in bundles which can be horizontal conveyor or inclined conveyor(<30°). Intended particularly for loading of waste paper (loose or in bales) or chemical pulp into a pulper.
File Download:
Click here!
  • Product Details
  • Chain Conveyor

    Chain conveyor is mainly used for conveying various kinds of pulp board, and waste paper in bulk and in bundles which can be horizontal conveyor or inclined conveyor(<30°). Intended particularly for loading of waste paper (loose or in bales) or chemical pulp into a pulper.

    Feature

    ★ Trough plate punch forming which has high strength and excellent in crushing effect.
    ★ Chain board adopts a closed design to prevent material leaking.
    ★ Two rows of idler traction chain and hollow roller shaft and oil can be injected from pin roll to shaft sleeve and wear-resistant zinc-copper bushing.
    ★ Two rows of chain adopt a long axis to prevent chain running deviation.
    ★ Chain wheel adopts cast steel to improve wear-resistant.
    ★ Raw material feeding plate adopts V design( more than effective conveying width 400mm) to improve the raw material throughput
    ★ Orbit-type running, operates steadily and reliably, with low friction and low power consumption.

    Specification

    Type

    HT-25A/B

    HT-275A/B

    HT-30A/B

    HT-325A/B

    HT-35A/B

    HT-4375A/B

    HT-40A/B

    HT-425A/B

    Drum Diameter: mm

    2500

    2750

    3000

    3250

    3500

    3750

    4000

    4250

    Processing capacity: t/d

    80-170

    130-220

    180-300

    230-380

    300-510

    410-700

    600-1100

    850-1400

    Power: kw

    132

    200

    280

    355

    500

    630

    900

    1120
