Disc Thickener

Disc Thickener is mainly used to wash and thicken for low consistency slurry like mechanical wood pulp, waste paper pulp, and reed pulp, bamboo pulp, bagasse pulp, straw pulp, etc.

Category:

Thickener Equipment

Email:

team3@huataogroup.com

WhatsApp:

Product Details

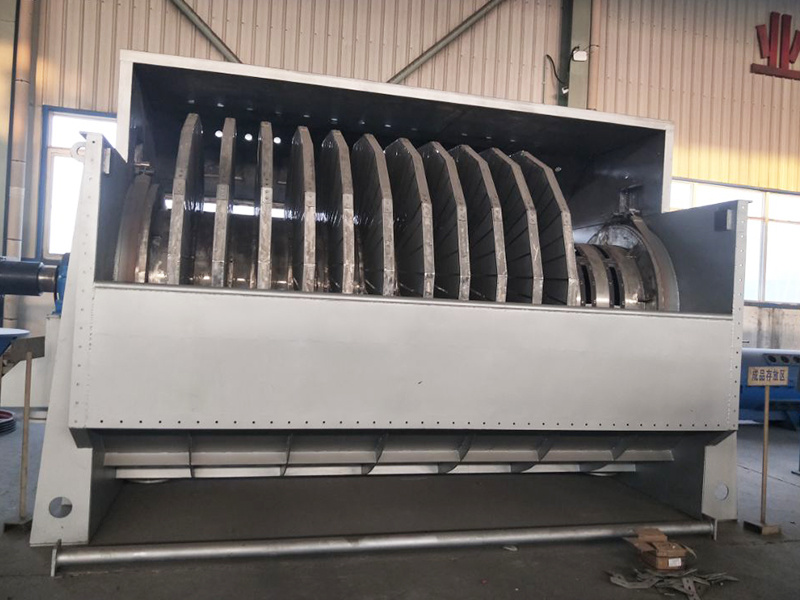

Disc Thickener

Disc Thickener is mainly used to wash and thicken for low consistency slurry like mechanical wood pulp, waste paper pulp, and reed pulp, bamboo pulp, bagasse pulp, straw pulp, etc.

Feature

★ Used to wash and thicken for low consistency slurry.
★ Combined disc type filter drum increases the filter area greatly. Less space requirement, but large production capacity.
★ Adopt stainless steel filter screen, long service life.
★ Reasonable structure for pulp cleaning and stripping.
★ The filter wire mesh is not easy to block. Dewatering capacity is good.

Technical Specification

Type		HT-2508	HT-2510	HT2512	HT2514	HT-2516	HT-3510	HT-3512	HT-3514	HT-3516
Dia of disc: mm		φ2500					φ3500
Normal filtrating area: m2		60	75	90	105	120	150	180	210	240
Number of disc: n		8	10	12	14	16	10	12	14	16
Density of inflow pulp: %		0.8 - 1.2
Density of outflow pulp: %		3 - 4
Capacity	AOCC: t/d	9 - 12					18 - 24
	ONP: t/d	5 - 7					10 - 14
Power of main motor: kw		7.5	11		15		22		30

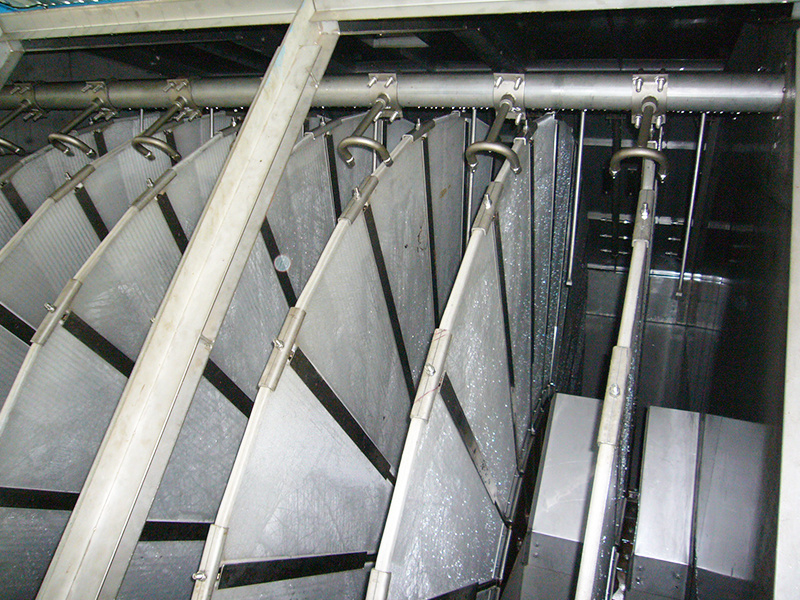

Filter Disc

It is assembled from stainless steel fan-shaped plates, covered with filter mesh, the filter mesh is 40~60 mesh, the fan-shaped filter plate is installed on the outer diameter of the main shaft, and connected with the main shaft by bolts, the structure is firm, and it is easy to assemble and disassemble.

Filter Bag For Disc

★ Filter Bag is mainly used in disc thickener in the pulp and paper industry.
★ Filter bag has the advantages of good heat shrinkability and long service life.
