Steel Cylpebs
- Product Details
-
High-Performance Grinding Media for Mining, Cement and Mineral Processing

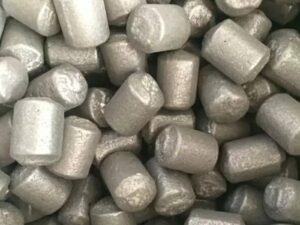

Our Grinding Cylpebs are cylindrical steel grinding media engineered for demanding grinding applications in mining, mineral processing, cement and other industrial milling operations. Designed as an alternative to conventional grinding balls, steel cylpebs provide a distinctive cylindrical geometry and increased contact area with the material, making them particularly suitable for secondary grinding, fine grinding and regrinding applications.
Available in forged, hot rolled and cast grades, our Steel Cylpebs can be selected according to mill type, ore characteristics, feed size, target product fineness, mill operating conditions and wear requirements. We can supply different steel grades, hardness levels and sizes to match specific grinding circuits.
Cylpebs are used in both wet and dry milling applications. Their geometry promotes efficient contact between the grinding media and the material being processed, helping achieve consistent particle size reduction and efficient grinding performance. Molycop likewise positions cylpebs as an alternative to traditional balls for wet and dry milling, with benefits including grinding efficiency, particle-size uniformity and reduced energy consumption.
Why Choose Grinding Cylpebs?
The performance of grinding media directly affects grinding efficiency, media consumption, mill availability and overall operating cost. For this reason, selecting the correct Grinding Media Cylpebs is not simply a matter of choosing a size; the material grade, hardness, toughness, manufacturing process and heat treatment must be matched to the actual milling conditions.
Our Wear-Resistant Steel Cylpebs are manufactured with controlled chemical composition and production processes to achieve a balanced combination of high hardness, abrasion resistance and impact toughness.
For applications where abrasive wear is the dominant failure mechanism, high-hardness or high-chrome grades can be selected. Where the grinding environment involves higher impact loading, a grade with an appropriate hardness-toughness balance can help reduce premature breakage and excessive media consumption.
Cylindrical Geometry for Efficient Grinding
Compared with conventional spherical grinding media, Cylpebs have a cylindrical geometry that creates different contact and grinding characteristics inside the mill. The increased contact area between the media and material can contribute to efficient particle breakage and more uniform grinding.
This makes Cylpebs Grinding Media particularly suitable for applications where controlled particle-size reduction and efficient fine grinding are important. Publicly available industry information describes cylpebs as particularly useful for improving grinding efficiency and particle-size distribution, especially in mineral processing and cement applications.
Manufacturing Options
We offer different manufacturing routes according to application requirements:
Hot Rolled Steel Cylpebs
Produced from selected steel material through controlled heating and rolling/forming processes. Hot rolled cylpebs are suitable for applications requiring consistent dimensions, reliable mechanical properties and economical grinding media consumption.Forged Steel Cylpebs
Forged from high-carbon or alloy steel, with controlled forging and heat treatment designed to improve internal structure, hardness and impact resistance. Forged grinding media are widely used in demanding mining and milling environments where both wear and impact resistance are important.Cast Grinding Cylpebs
Cast cylpebs can be produced in alloyed and high-chrome grades for applications where high abrasion resistance is the primary requirement. High-chrome cast grinding media are commonly selected for highly abrasive grinding conditions. Publicly available supplier data shows high-chrome cylpebs with hardness levels above approximately 58 HRC for selected grades.
Heat Treatment and Quality Control
Consistent grinding performance depends on more than surface hardness. Our production control focuses on chemical composition, dimensional consistency, hardness distribution, microstructure and heat treatment.
Depending on the selected grade, controlled quenching and tempering can be applied to obtain the required combination of surface hardness and core toughness. Hardness testing can be performed on the surface and cross-section to verify the consistency of the finished grinding media.
For high-chrome grades, alloy composition and microstructure are especially important because chromium carbides contribute to abrasion resistance. Different grades can therefore be selected according to ore abrasiveness and mill operating conditions.
Applications
Our Mining Grinding Media Cylpebs are designed for a wide range of industrial grinding circuits.
Mining & Mineral Processing
Steel Cylpebs can be used in grinding circuits for gold ore, copper ore, iron ore and other metallic minerals. They are suitable for secondary grinding, fine grinding and regrinding applications where high wear resistance and stable grinding performance are required.
For mineral processing plants, grinding media selection should consider ore hardness, abrasiveness, mill speed, pulp density, feed size and required product fineness. Selecting the appropriate cylpeb grade can help control media consumption while maintaining stable grinding performance.
Cement Plants
Cement Plant Grinding Cylpebs can be used in cement and mineral grinding applications where consistent particle-size reduction is required. Their cylindrical geometry can provide effective media-to-material contact and is particularly relevant to fine-grinding sections.
Industrial & Chemical Processing
Depending on the material being processed and mill configuration, Steel Grinding Cylpebs can also be applied to selected industrial grinding processes, including mineral materials, silica sand and other abrasive products. Public industry sources identify mining, cement and mineral processing as major application sectors for cylpebs.
Technical Specifications
Item Typical Specification Product Grinding Cylpebs / Steel Cylpebs Shape Cylindrical with flat or slightly rounded ends Available Sizes 10–90 mm standard; other sizes on request Manufacturing Hot Rolled / Forged / Cast Material High Carbon Steel / Alloy Steel / High Chrome Alloy Hardness Approx. 50–65 HRC, depending on grade Chemical Elements C, Si, Mn, Cr and other alloying elements Heat Treatment Quenching & Tempering, according to grade Application Ball Mills / Grinding Mills Grinding Type Wet Grinding / Dry Grinding Industries Mining / Mineral Processing / Cement / Industrial Grinding Packaging Steel Drums / Jumbo Bags / Bulk, according to requirement Note: Actual size range, chemical composition and hardness should be confirmed according to the selected grade and production specification. For example, published industry data shows different cylpeb grades ranging from lower-chrome alloy compositions to high-chrome grades, with hardness varying substantially by material and heat treatment.
Customized Grinding Media Solutions
Every grinding circuit is different. Instead of supplying one standard grade for every application, we can recommend the appropriate Grinding Cylpebs based on your operating conditions.
Please provide the following information when requesting a quotation:
- Ball mill diameter and effective grinding volume
- Current grinding media size and material
- Required Cylpeb dimensions
- Ore or material being processed
- Feed size and target product size
- Wet or dry grinding
- Current media consumption
- Required hardness or steel grade
- Estimated annual consumption
Based on this information, we can recommend a suitable Steel Cylpebs grade, size and manufacturing process.
Request a Quote
Looking for reliable Grinding Cylpebs for your ball mill?
Send us your required size, material grade, hardness, quantity and application, and our team will provide a suitable grinding media solution and quotation.
Contact us for Grinding Cylpebs, Forged Steel Cylpebs, Hot Rolled Cylpebs and Cast Grinding Cylpebs for mining and cement applications.
3. Product Summary
Steel Grinding Cylpebs are wear-resistant cylindrical grinding media designed for ball mills and industrial grinding circuits. With multiple material grades, manufacturing options and hardness levels available, they provide a practical solution for mining, mineral processing, cement and other demanding grinding applications.
