Vibrating Feeder

The main body of the Multi-deck High Frequency Vibrating Screen is riveted with rivets, which ensures the reliability and stability of the long-term operation of the equipment, and reduces the number of maintenance and labor.

Category:

Vibratory Screener

Email:

team3@huataogroup.com

WhatsApp:

Product Details

Description

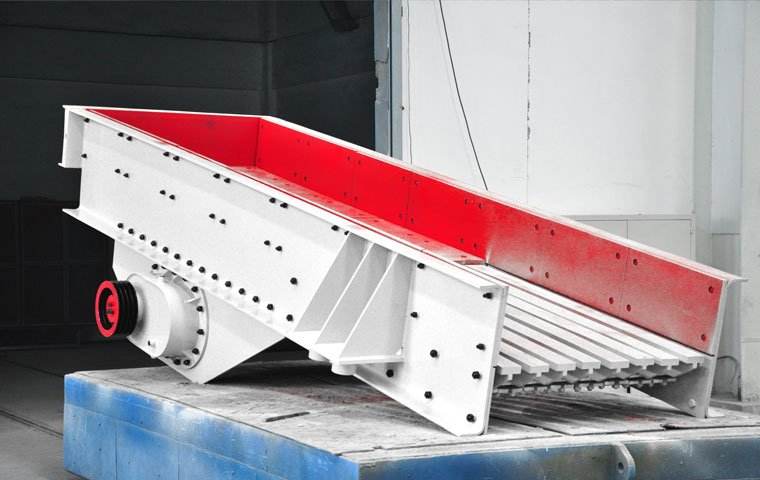

★ The vibrating feeder uses the rotation of the eccentric block in the vibrator to generate centrifugal force, so that the movable parts such as the screen box and the vibrator make a forced continuous circular or approximate circular motion. The material is continuously thrown with the screen box on the inclined screen surface, and the material is continuously and evenly sent to the material receiving port.
★ Vibrating feeder drives the double eccentric shaft vibration exciter by the motor through the V-belt. The two eccentric shafts in the vibration exciter are guaranteed to rotate in the opposite direction by meshing gears at both ends. When the two eccentric shafts are assembled, the eccentricity forms a certain angle. The centrifugal force generated causes the box to produce reciprocating linear projection vibration, and the material moves forward continuously during the vibration process. The front end of the machine is equipped with pre-screening screen bars to remove soil impurities or pre-screen materials.

Uses and Features

Vibrating feeder are widely used in transportation, mining, metallurgy, water conservancy and other industries, and are ideal supporting equipment for crushing machinery. This machine has the characteristics of compact structure, strong excitation force, large feeding amount, stable vibration, reliable operation, long service life, large feeding particle size, impact resistance, and pre-screening of materials.

Product Gallery
