Poly Ripple Screen

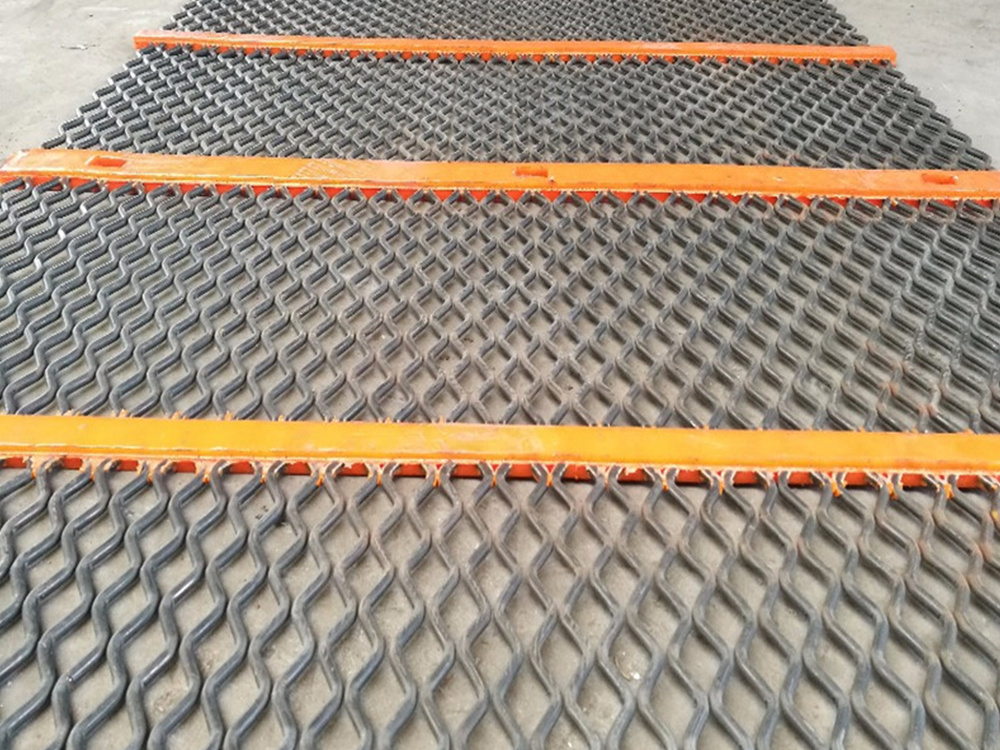

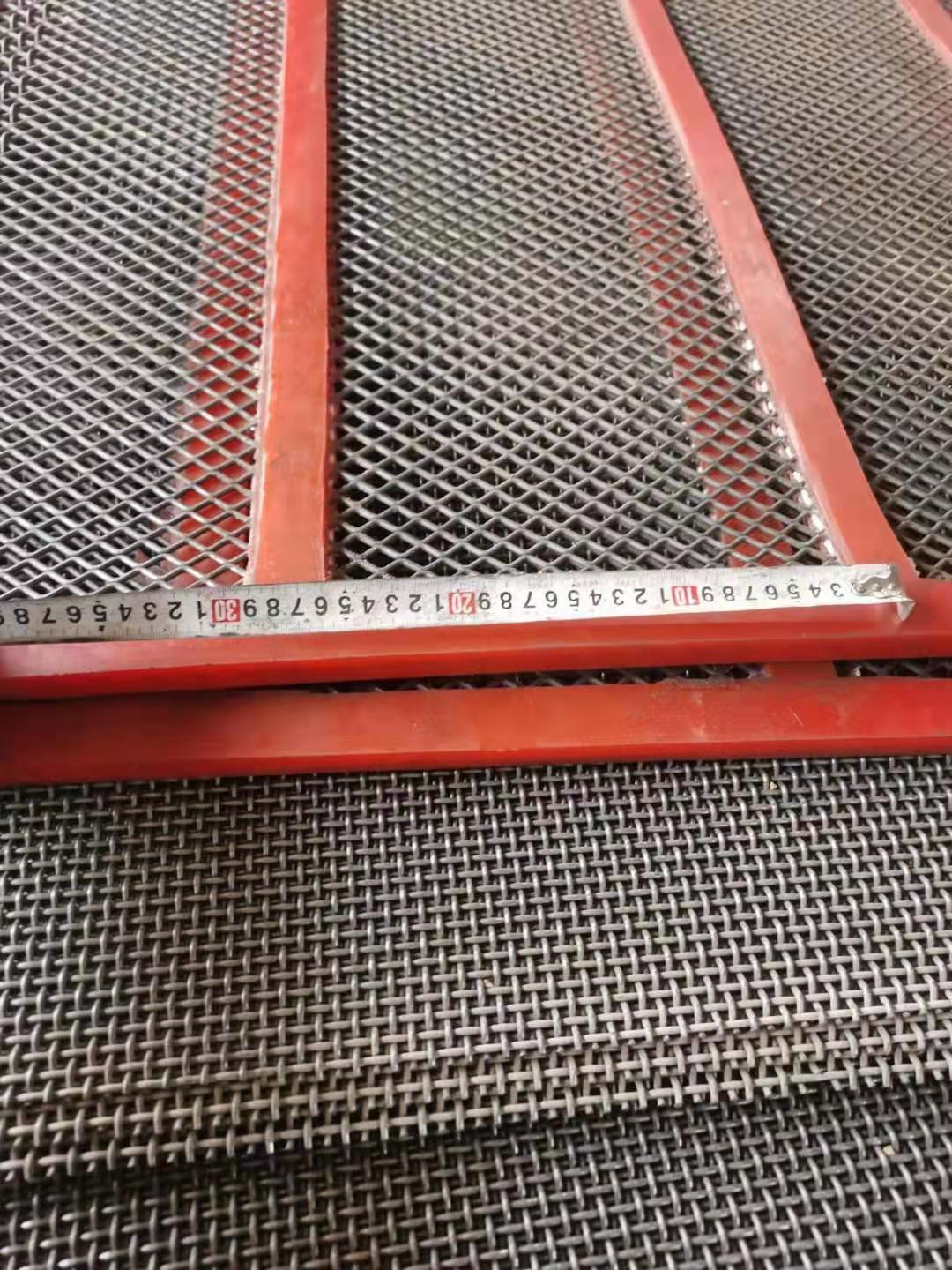

Poly ripple screen is produced base on self cleaning screen mesh is available in high tensile steel mesh or stainless steel, With the pu strips where on the bars of deck.

Category:

Vibrating Screen Medias

Email:

team3@huataogroup.com

WhatsApp:

Product Details

Description

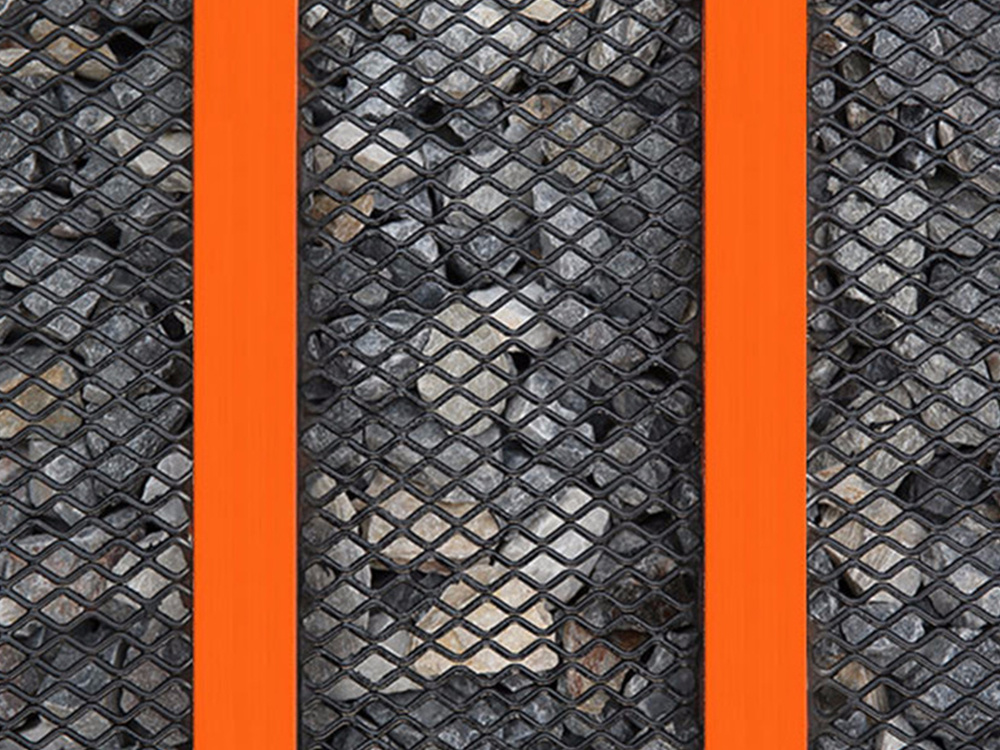

The core of the poly ripple screen lies in its three-dimensional variable aperture. By introducing dynamic diamond-shaped screen holes, the technology allows the screen to generate secondary vibrations during random vibrations, thereby creating effective vibration differences. This design enables the screen holes to be adjusted in real time according to the needs of different materials, greatly reducing the possibility of screen hole blockage.

Specification

★ Material: Carbon Steel; Stainless steel
★ Aperture: 1-5mm
★ Wire Diameter: 2-12mm
★ Strip Material: Polyurethane
★ Strip Width: 1.5cm - big

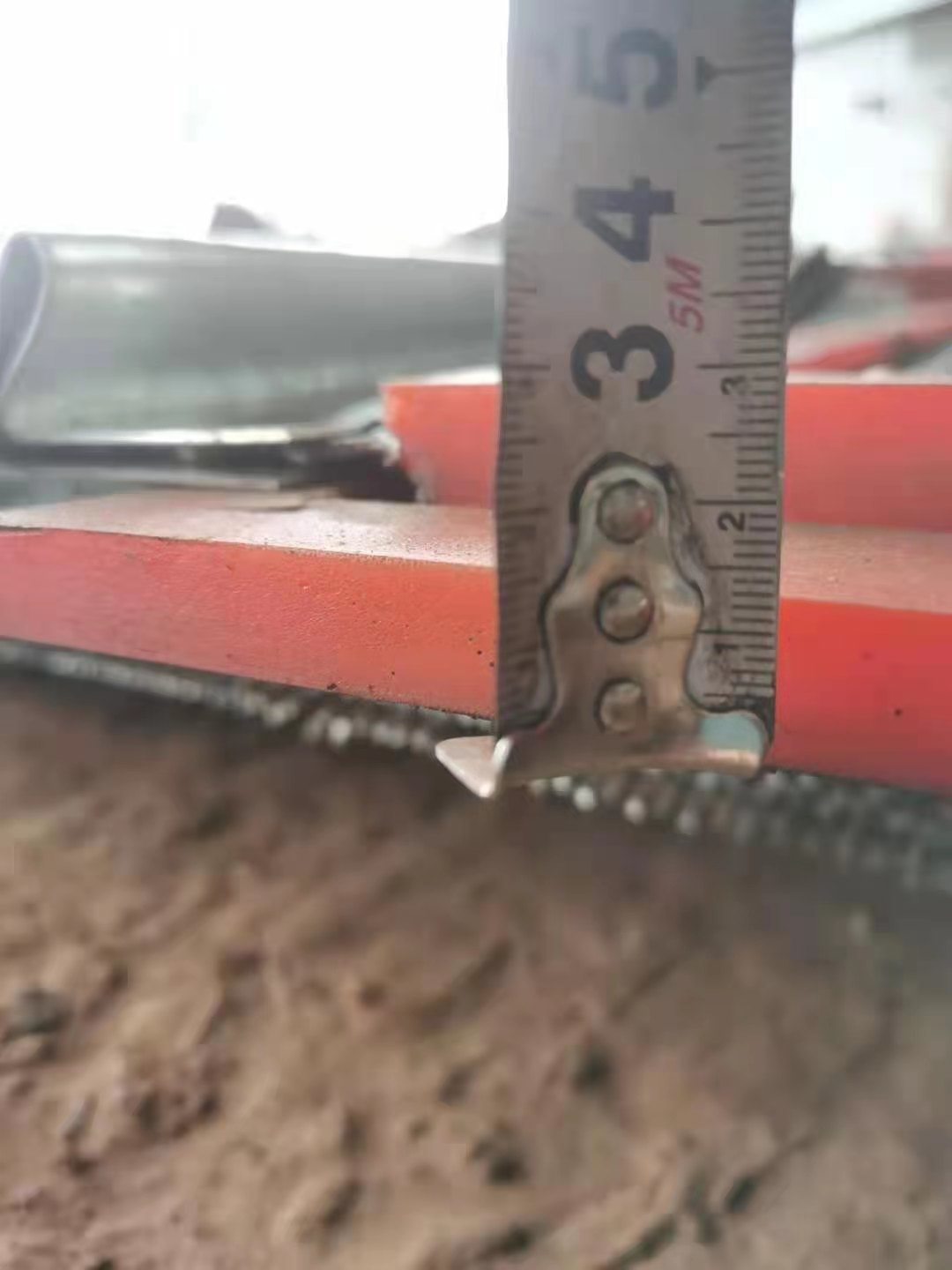

★ Strip Thickness: 8mm - big
★ Strips Quantity: as client's requests

Features

★ The vertical and horizontal bars of the screen are made of highly wear-resistant polyurethane material. The service life is 3-10 times longer than that of traditional metal screens.
★ The unique structure, suitable elasticity and plasticity can reduce blockage, and at the same time, due to the high-frequency vibration of the second harmonic of the screen bar, it can also reduce sticking. The practical opening rate is high and the screening efficiency is high.
★ There are elastic tensioning hooks on both sides of the screen, which is light in overall weight, good in flexibility, easy to transport and store, and convenient to install and disassemble.
★ The screen can effectively absorb impact, reduce noise, and improve the working environment.

Product Gallery
