Guide Roll
- Product Details
-

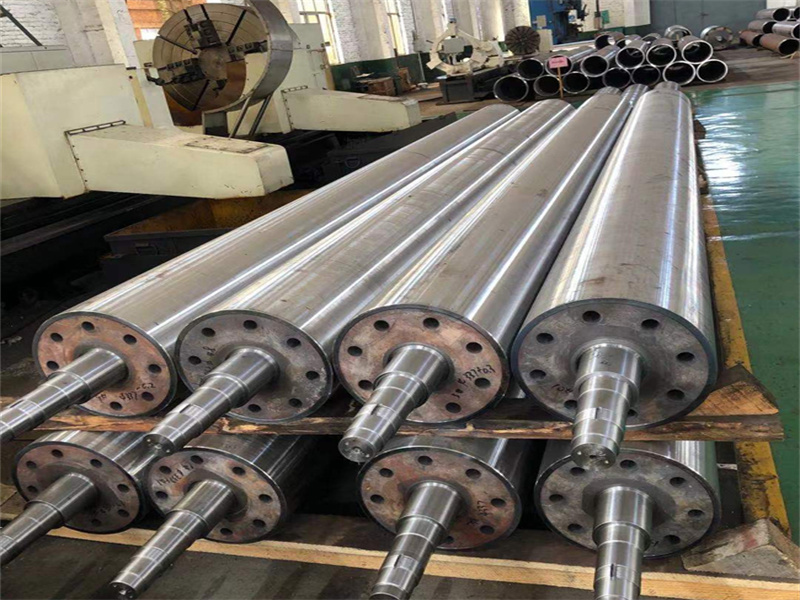

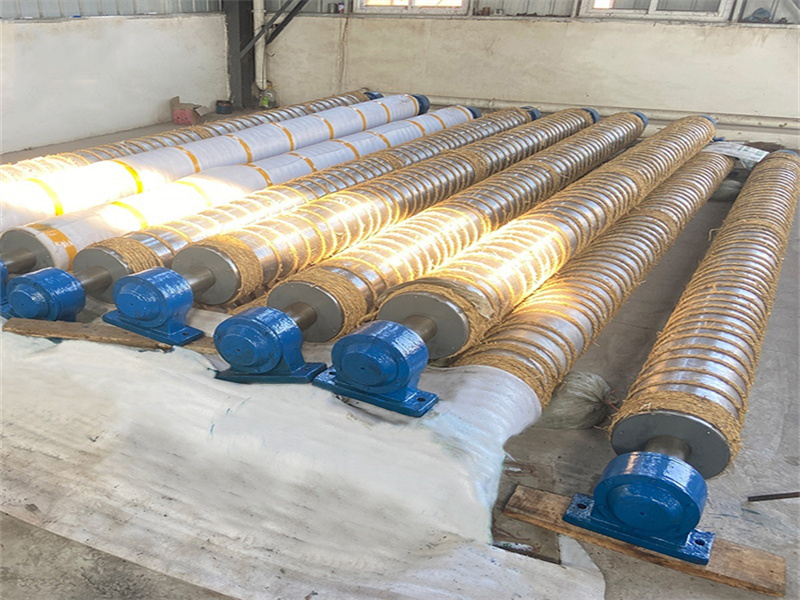

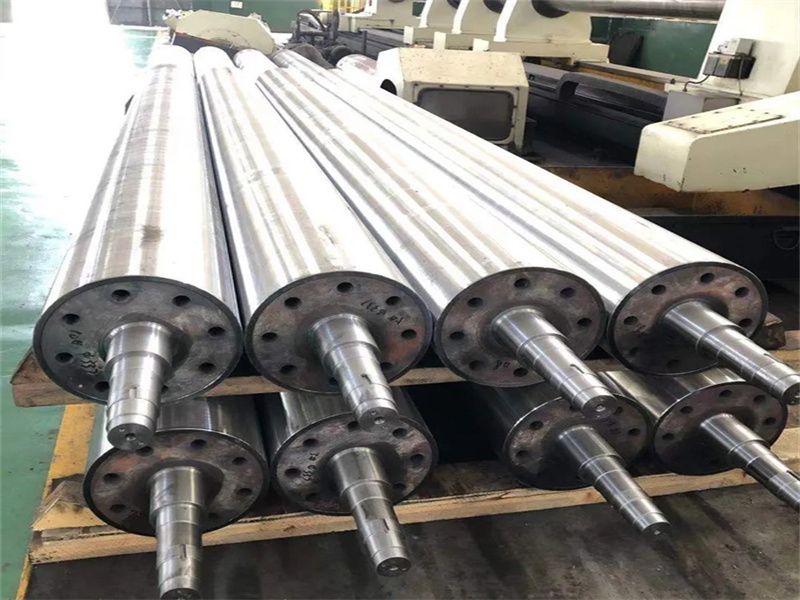

Guide Roll
The guide roll is the most used roll in the paper machine, mainly distributed in the wire section, drying section, and press section. Its main function is to transmit the operation of the papermaking wire and felt. There are smooth rollers used in the dryer section. With the increase in the speed of the paper machine and the increase of the width of the paper web, this requires the wall thickness of the guide roller to be more uniform, and at the same time puts forward higher requirements for the dynamic deflection to meet the needs of the high-speed paper machine.
Specifications
Face Length
1200-7500 mm
Diameter
100-1600 mm
Center Distance
1300-8000 mm
Body Material
Cast iron/carbon steel
Shaft head Material
40# steel
Surface Treatment
Rubber coated
Cover Thickness
20-35 mm
Hardness of Rubber
A97
Lubrication
Grease
Features
★ High unit strength
★ Light weight
★ Small inertia
★ Bright surface and no rustPhoto Gallery
